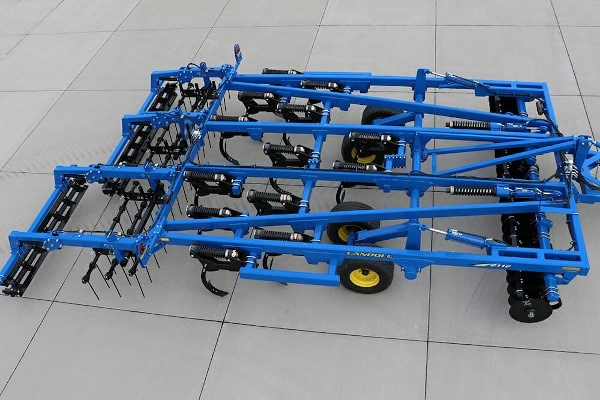

Coulter Chisel with Auto-Reset Shanks
2132-23
Overview:
Manage heavy residue conditions at higher speeds with maximum efficiency with the Landoll 2100 Coulter Chisel.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Size Heavy Residue and Eliminate Compaction
- 22” Coulters on 7 ½” Spacing with Depth Gauge Indicator
- 1 ¾” Gang Bolt
- 5 ¾” Solid Cast Spools
- C-Cushion Bearing Standards with Trunnion Bearings with Triple Lip Seal
- Scraper Mounted Bracket Attached to C-Cushion Bearing Standard
- Auto-Reset Shank Assemblies with 1,750 lb. Point Load, 14” Trip Height, 32” Under Frame Clearance, Adjustable 50 or 60 Degree Point Angle
- Rigid Shear Bolt Shanks with 32” Under Frame Clearance
- Choice of Twisted Shovels or Straight Points
- 5 ½” Lift Axles with Maintenance Free Lift System
- Walking Tandems with Greaseable Bearings on all Sizes
- 340/65R x 18 Radial Tires with 8-Bolt Hubs and 3” Slip-In Spindles on Rigid Models and Wings of Folding Units
- 400/60R x 18 Radial Tires with 8-Bolt Hubs and 3 ¼” Slip-In Spindles on Center Sections of Folding Units
- Self-Leveling Hitch with Manual Adjustment
- Single Point, Front Mounted Depth Control
- Adjustment and Gang Wrench
- Sapphire Blue Powder Coat Paint
Specifications
| Product Attributes | 2132-23 |
| Approximate Weight | 31,330 lbs. (14,211 kg) |
| Working Width | 28 ft. 9 in. (8.8 m) |
| Transport Width | 15 ft. 6 in. (4.7 m) |
| Transport Height | 13 ft. 11 in. (4.2 m) |
| Number of Coulter Blades | 47 |
| Blade Spacing | 7.5 in. (191 mm) |
| Blade Size | 22 in. x 0.25 in. (559 x 6.4 mm) |
| Coulter Protection | Spring Cushioned/C-Flex |
| Blade Scrapers | Heavy-Duty 0.3125 in. x 6 in. (7.9 x 152 mm) |
| Blade Scraper Mount | C-Cushion Mounted |
| Gang Spools | 5.75 in. (146 mm) Diameter Solid Cast |
| Gang Shaft | 1.75 in. (44.5 mm) Round |
| Number of Bearings | 12 |
| Gang Bearing Type | C-Cushion Trunnion Mount, Greaseable Triple Lip Seals |
| Number of Shanks | 23 |
| Shank Type | Auto-Reset |
| Shank Spacing | 15 in. (381 mm) |
| Shank Mounts | Wrap-Around Design |
| Shank Arms | 5 in. x 3 in. x 0.375 in. (127 x 76.2 x 9.5 mm) |
| Point Load - Auto Reset | 1,750 lbs. (794 kg) |
| Trip Height | 14 in. (356 mm) |
| Shank Size | 1.25 in. x 2.5 in. (31.8 x 63.5 mm) |
| Standard Shovels | 4 in. (102 mm) Twisted |
| Point Angle | 50 or 60 Degree |
| Shank Offset | 12 in. (305 mm) on Rear Bar |
| Under Frame Clearance | 32 in. (813 mm) |
| Frame | 6 in. x 4 in. x 0.375 in. (152 x 102 x 9.5 mm) |
| Frame Construction | Laser Cut/Matchcut Components, Robotically Welded |
| Transport Lift Axles | 5.5 in. (140 mm) with UHMW Maintenance Free Pivots |
| Transport Axle Type | Walking Tandems with Greaseable Pivots |
| Tire Size - Main Frame | (4) 400/60R x 18 Radial Tires |
| Wheel Hubs - Main Frame | 8-Bolt |
| Spindles - Main Frame | 3.25 in. (83 mm) Slip-In Spindles |
| Tire Size - Wing Frame | (4) 340/65R x 18 Radial Tires |
| Wheel Hubs - Wing Frame | 8-Bolt |
| Spindles - Wing Frame | 3 in. (76.2 mm) Slip-In Spindles |
| Hitch Type | Self-Leveling with Manual Adjustment |
| Hitch Category | Cat. IV Ball, Single Lip with 2 in. (50.8 mm) Hole |
| Machine Depth Control | Single Point, Front Mounted |
| Weight Kits Needed | With Attachment - 3 Required |
| Safety Warning Lights and SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Adjustment Wrenches | Standard |
| Powder Coat Paint, Blue Sapphire | Standard |
| Cat. III Single Lip Hitch Clevis | N/A |
| Cat. IV Single Lip Hitch Clevis | Standard |
| Cat. V Single Lip Hitch Clevis | Optional |
| 2 in. Straight Points | Optional |
| 3 in. Twisted Shovels | Optional |
| Rear Hitch | Optional |
| Rear Hitch With Hydraulic Hoses | Optional |
| Spare Tire & Wheel Assembly | Optional |
| Horsepower Requirements | 20 to 30 HP (15 to 22 kW) per Shank |
Specifications subject to change with or without notice.
