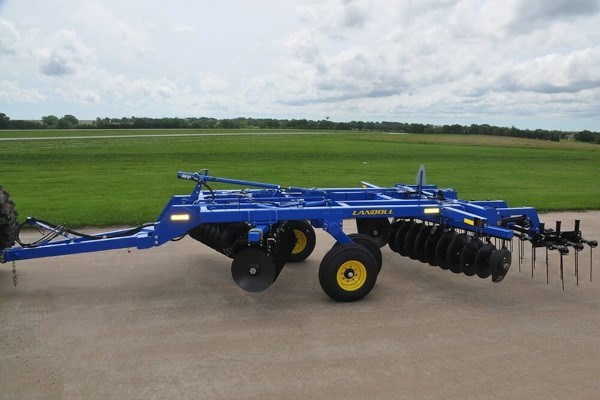

6211-14
Overview:
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Laser Cut, Robotically Welded Frame
- 5 1/2” Lift Axles with Maintenance-Free Lift System
- Walking Tandems on All Sizes (Single Wheel on Wing of 21' Unit)
- Slip-In Spindles
- 320/70R x 15, 380/55R x 16.5, 410/50R x 16.5, 265/70R x 19.5 Radial Tires (Model Dependent)
- Self-Leveling Hitch with Hydraulic Leveling Adjustment
- Cast Single Lip Hitch Cat. III or Cat. IV (Model Dependent)
- Single Point Depth Control
- Pivoting Wing Gauge Wheels on All Folding Models
- 7″, 8 3/4″ or 10 1/2″ Blade Spacing (Model Dependent)
- 22", 24", 26" or 28" Diameter Blades (Model Dependent)
- Fixed Front and Rear Gang Angles
- 1 3/4” Gang Bolt
- Steel Spools 5 1/2” Diameter with 1/4” Wall Thickness
- Trunnion Mount Bearings
- C-Cushion Bearing Mounts
- Overlapping/Staggered Offset Tandem Disc Gangs
- Heavy-Duty Adjustable Scrapers
- Adjustment/Maintenance Wrenches
- Blue Powder Coat Paint
- LED Safety Warning Lights
Specifications
| Model | 6211-14 |
| Approximate Weight | |
| 22 in. Blades | 8,498 lbs. (3,855 kg) |
| 24 in. Blades | 8,717 lbs. (3,954 kg) |
| 26 in. Blades | 9,317 lbs. (4,226 kg) |
| Working Width | 13 ft. 8 in. (4.2 m) |
| Front Gang Width | 11 ft. 2 in. (3.4 m) |
| Transport Width | 14 ft. 6 in. (4.4 m) |
| Number of Blades - Front Gang | 18 |
| Number of Blades - Rear Gang | 20 |
| Blade Size | 22 in. (559 mm) x 0.25 in. (6.35 mm) 24 in. (610 mm) x 0.25 in. (6.35 mm) 24 in. (610 mm) x 0.25 in. (6.35 mm) Rollable 26 in. (660 mm) x 0.25 in. (6.35 mm) |
| Blade Concavity | Regular Concavity |
| Blade Spacing - Front Gang | 8.75 in. (222 mm) Standard 7 in. (178 mm) (Optional with 22 in. Blades) |
| Blade Spacing - Rear Gang | 8.75 in. (222 mm) Standard 7 in. (178 mm) (Optional with 22 in. Blades) |
| Blade Scrapers | 4.5 in. (114 mm) Adjustable |
| Blade Scraper Mount | Heavy-Duty 0.5 in. (12.7 mm) Spring Steel Arm |
| Gang Spools - Front Gang | 5.5 in. (140 mm) Diameter, 0.25 in. (6.35 mm) Wall Weldment |
| Gang Spools - Rear Gang | 5.5 in. (140 mm) Diameter, 0.25 in. (6.35 mm) Wall Weldment |
| Gang Angle - Front | 20 Degree |
| Gang Angle - Rear | 18 Degree |
| Gang Shaft | 1.75 in. (44.5 mm) Round |
| Gang Bearings | C-Cushion Trunnion Mount with Greaseable Triple Lip Seals |
| Frame Construction | Laser Cut/Matchcut Components, Robotically Welded |
| Transport Lift Axles | 5.5 in. (140 mm) with UHMW Maintenance Free Pivots |
| Transport Axle Type | Walking Tandems with Maintenance Free Pivots |
| Tire Size | (4) 320/70R x 15 Radial Tires |
| Wheel Hubs | 8-Bolt |
| Spindles | 3 in. (76.2 mm) Slip-In Spindles |
| Hitch Type | Self-Leveling with Hydraulic Adjustment |
| Hitch Category | Cat. III Cast Single Lip Ball Hitch |
| Machine Depth Control | Single Point, Front Mounted |
| Safety Chain Kit, LED Warning Lights & SMV Emblem | Standard |
| Adjustment Wrenches | Standard |
| Powder Coat Paint, Blue Sapphire | Standard |
| Spare Tire and Wheel Assembly | Optional |
| Double Lip Hitch Clevis | Optional |
| Rear Tow Hitch with Hydraulic Hoses | Optional |
| Chevron Conditioner Reels | Optional |
| 3-Row Coil Tine Harrow | Optional |
| Horsepower Requirements | 8 to 10 HP (6 to 7 kW) per Foot |
Specifications subject to change with or without notice.
