7450-44
Overview:
DURABLE AND RELIABLE

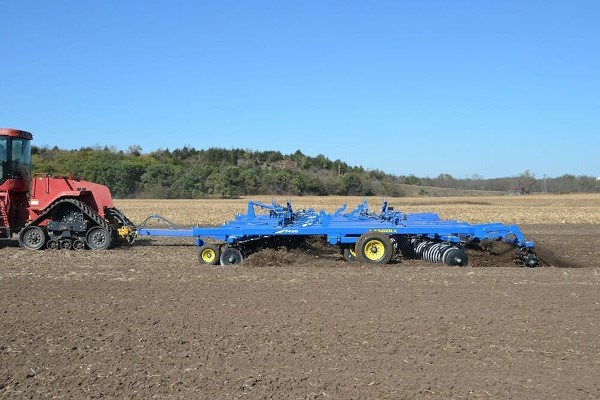

The Landoll 7400 VT Plus Series is built in true Landoll style…precision, laser cut frame components that embrace the technology of robotic welding to its fullest. Durability is built-in, not added on. Incorporation of UHMW polymer in the lift axles provides a maintenance-free feature that eliminates daily greasing. Trunnion mount bearings are used throughout the disc assemblies and are covered by a 3-year warranty. Gang angles are fixed at 10 degrees on the front and rear and disc blades are spaced at 7” on all gangs. The blades are 22” or 24″ low concavity; blade thickness is ¼”.
The self-leveling hitch and single point depth control add to the list of items that extend the reliability of the VT Plus beyond the competition. Over-sized tires on walking tandem axles carry the load and allow for precision depth control across the entire width of the machine. Pivoting gauge wheels on the front of the wings contribute to a controlled depth of the wings even at higher speeds.
SIZED TO FIT
The VT Plus Series is available in sizes from 13’ 10” to 49’ 9”. The units up to 33′ are 3 section folding while the units from 39’ 9” to 49’ 9” feet are 5 section folding. The 3 section units transport under 17’ 11”; the 5 section machines transport at 17’ 4″. Transport heights range from 9’ 10” to 13’ 11”. Horsepower requirements for the VT Plus Series are 8-10 HP per foot.
RESULTS
With proper depth and timing, the 7400 Series VT Plus from Landoll can minimize moisture loss and improve seed to soil contact. Isn’t it time that excessive residue levels and cold, wet spring soils be addressed in your operation? Put the 7400 VT Plus to work for you and increase your R.O.I. with higher yields, a direct result of earlier planting for improved and more uniform emergence.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Laser Cut, Robotically Welded Frame
- 5 1/2” Lift Axles with Maintenance-Free Lift System
- Walking Tandems on All Sizes
- Slip-In Spindles
- o 320/70R x 15, 380/55R x 16.5, or 410/50R x 16.5 Radial Tires (Model Dependent)
- Self-Leveling Hitch with Hydraulic Leveling Adjustment
- Cast Single Lip Hitch Cat. III or Cat. IV (Model Dependent)
- Single-Point Depth Control
- Pivoting Wing Gauge Wheels on All Models
- 22” or 24″ Disc Blades Spaced at 7” on All Models
- 10 Degree Gang Angle Front and Rear
- 1 3/4” Gang Bolt
- Solid 5 1/2” Cast Iron Spools of Front Gang
- Steel Spools 5 1/2” Diameter with 1/4” Wall Thickness on Rear Gang
- Trunnion Mount Bearings
- C-Cushion Bearing Mounts
- Overlapping/Staggered Offset Tandem Disc Gangs
- Heavy-Duty Adjustable Scrapers
- Adjustment/Maintenance Wrenches
- Blue Powder Coat Paint
- Safety Warning Lights
Specifications
| Product Attributes | 7450-44 |
| Approximate Weight | 39,490 lbs. (17,912 kg) |
| Working Width | 44 ft. 9 in. (13.6 m) |
| Front Gang Cut | 42 ft. 6 in. (13.0 m) |
| Transport Width | 17 ft. 4 in. (5.3 m) |
| Transport Height | 12 ft. 3 in. (3.7 m) |
| Number of Blades - Front Gang | 74 |
| Number of Blades - Rear Gang | 76 |
| Blade Size | 22 in. (559 mm) x 0.25 in. (6.35 mm) 24 in. (610 mm) x 0.25 in. (6.35 mm) 24 in. (610 mm) x 0.25 in. (6.35 mm) Rollable |
| Blade Concavity | Low Concavity |
| Blade Spacing - Front Gang | 7 in. (178 mm) |
| Blade Spacing - Rear Gang | 7 in. (178 mm) |
| Blade Scrapers | 5.5 in. (140 mm) Adjustable |
| Blade Scraper Mount | Heavy-Duty 0.5 in. (12.7 mm) Spring Steel Arm |
| Gang Spools - Front Gang | 5.5 in. (140 mm) Diameter, 0.25 in. (6.35 mm) Wall Weldment - Center Section 5.5 in. (140 mm) Diameter - Solid Cast on Wings |
| Gang Spools - Rear Gang | 5.5 in. (140 mm) Diameter, 0.25 in. (6.35 mm) Wall Weldment |
| Gang Angle | 10 Degree |
| Gang Shaft | 1.75 in. (44.5 mm) Round |
| Gang Bearings | C-Cushion Trunnion Mount with Greaseable Triple Lip Seals |
| Number of Gang Bearings - Front | 20 |
| Number of Gang Bearings - Rear | 20 |
| Frame Construction | Laser Cut/Matchcut Components, Robotically Welded |
| Transport Lift Axles | 5.5 in. (140 mm) with UHMW Maintenance Free Pivots |
| Transport Axle Type | Walking Tandems with Greaseable Pivots |
| Tire Size - Center Section | (8) 265/70R x 19.5 Radial Tires |
| Tire Size - Wings | (8) 410/50R x 16.5 Radial Tires |
| Wheel Hubs - Center Section | 8-Bolt |
| Wheel Hubs - Wings | 8-Bolt |
| Spindles - Center Section | 4 in. (102 mm) Slip-In Spindles |
| Spindles - Wings | 3 in. (76.2 mm) Slip-In Spindles |
| Hitch Type | Self-Leveling with Hydraulic Adjustment |
| Hitch Category | Cat. IV Cast Single Lip Ball Hitch |
| Machine Depth Control | Single Point, Front Mounted |
| Wing Gauge Wheels - Swivel Type | (4) Standard |
| Safety Chain Kit, LED Warning Lights & SMV Emblem | Standard |
| Adjustment Wrenches | Standard |
| Powder Coat Paint, Blue Sapphire | Standard |
| Spare Tire & Wheel Assembly | Optional |
| Cat. V Cast Single Lip Ball Hitch | Optional |
| Double Lip Hitch Clevis | N/A |
| Rear Tow Hitch with Hydraulic Hoses | Optional |
| Chevron Reel Package | Standard |
| Chevron Reel Specifications | 14 in. (356 mm) Diameter, 0.875 in. (22.2 mm) Rod Diameter |
| Reel Protection | Adjustable Spring Loaded Down Pressure |
| Reel Bearings | C-Cushion Trunnion Mount, Greaseable Triple Lip Seals |
| Hydraulic Reel Lift | Optional |
| Double Reel Option in lieu of Chevron Reels | Optional |
| Horsepower Requirements | 8 to 10 HP (6 to 7 kW) per Foot |
