Landoll 7812-13

Double tap to zoom

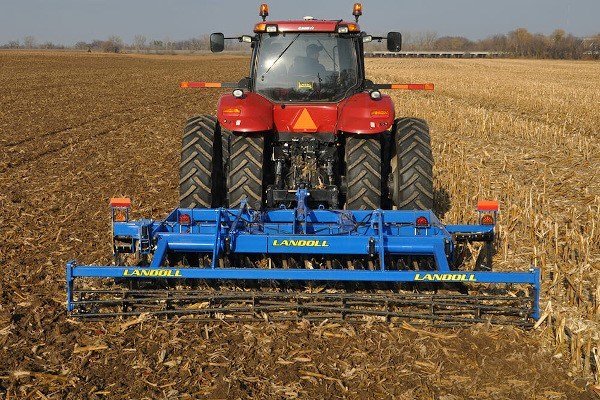

7800 Series High Speed Landoll (HSL)

7812-13

Overview:

Get high speed residue management with features that leave the competition behind with the High Speed Landoll (HSL) Disc.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Features That Leave the Competition Behind

Operating Depth Range of 2” to 5”
Individually Mounted 24” Notched or Smooth Blades on 10” Spacing and 17 Degree Angle
Rubber Torsion Spring Pressure on Blade Arms
Maintenance-Free Dual Tapered Roller Disc Bearings
Available with Chevron Reels, Spring Tine Reels, Rubber Rollers or Double Chevron Rollers (Model Dependent)
Smoothest Ride of all High Speeds with Spring Cushioned Rollers/Reels; Bounce is Eliminated
Tilt Control Feature to Level Front to Rear
All Adjustments are Simple; Front Mounted Depth Controls are Easy to Access
Laser Cut, Robotically Welded Frame
Heavy-Duty Transport Axles with UHMW Maintenance-Free Pivots
Heavy-Duty Flotation Tires
Walking Tandems on Wings
Floating Hitch Helps Maintain an Even Cutting Depth
Hydraulic Jack for Easy Hook-ups
13’ Three-Point Hitch Model
17’, 20’ and 23’ Pull-Type Two-Section Folding Models
25’, 30’, 35’ and 40’ Pull-Type Three-Section Folding Models
Narrow Transport Width
Blue Powder Coat Paint
LED Safety Warning Lights

Specifications

Model	7812-13
Approximate Weight (with Chevron Reels)	7,948 lbs. (3,605 kg)
Working Width	13 ft. 4 in. (4.1 m)
Transport Width	16 ft. 0 in. (4.9 m)
Transport Height	N/A
Operating Depth Range	2 in. to 5 in. (50.8 to 127 mm)
Number of Blades - Front	17
Number of Blades - Rear	16
Blade Diameter	24 in. (610 mm)
Blade Thickness	0.25 in. (6.35 mm)
Blade Concavity	3 in. (76.2 mm)
Blade Spacing - Front and Rear	10 in.
Disc Angle - Front and Rear	Pre-Set Non-Adjustable Compound Angle
Number of Disc Bearings - Front	17
Number of Disc Bearings - Rear	16
Disc Protection	Torsion Mounted
Disc Bearings	Individually Mounted with 5-Lip Seal
Frame Construction	Laser Cut/Matchcut Components, Robotically Welded
Transport Axles	Three-Point Lift Assist- Optional
Wing Axles	N/A
Main Frame Tires	N/A
Main Frame Spindles	N/A
Main Frame Hubs	N/A
Wing Frame Tires	N/A
Wing Frame Spindles	N/A
Wing Frame Hubs	N/A
Hitch Type	Three-Point Hitch
Hitch Category	Cat. III Quick Hitch Compatible
Machine Depth Control	Single Point, Front Mounted Depth Control
Safety Warning Lights and SMV Emblem	Standard
Safety Chain Kit	Standard
Adjustment Wrenches	Standard
Powder Coat Paint, Blue Sapphire	Standard
Cat. V Single Lip Hitch with 3 in. Hole	N/A
Spare Tire and Wheel for Center Section	N/A
Horsepower Requirements	15 to 17 HP (11 to 13 kW) per Foot

Specifications subject to change with or without notice.
