Landoll 7833-30

Double tap to zoom

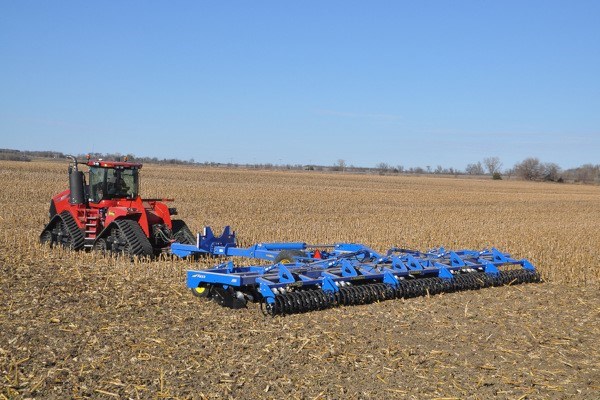

7800 Series High Speed Landoll (HSL)

7833-30

Overview:

Get high speed residue management with features that leave the competition behind with the High Speed Landoll (HSL) from Landoll.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Laser Cut, Robotically Welded Frame
Heavy-Duty Transport Axles with UHMW Maintenance Free Pivots
(2) 710/40R x 22.5 Tires with 10-Bolt Wheels and 4” Slip-In Spindles on Center Section
(4) 32/1550 x 16.5 Tires with 8-Bolt Wheels and 2 1/4” Slip-In Spindles on Wings
Individually Mounted 24” Notched or Smooth Blades on 10″ Spacing and 17 Degree Angle
Option of an Aggressive Compound or Vertical Blade Angle
Torsion Mounted Disc Mount
Maintenance-Free Dual Tapered Roller Disc Bearings
Floating Hitch
Front Mounted Depth Adjustment
Depth is Gauged by Wheels in Front and Reels in Rear
Operating Depth Range of 2” to 5”
Cast Lip Cat. IV Hitch
Available with Chevron Reels, Spring Tine Reels, Rubber Rollers or Double Chevron Rollers (Model Dependent)
13’ Three-Point Hitch Model
15′, 17′, 20′ and 22′ Two-Section Folding Models
25’, 30’, 35’ and 40’ Pull-Type Three-Section Folding Models
Blue Powder Coat Paint
LED Safety Warning Lights

Specifications

Product Attributes	7833-30
Approximate Weight (with Chevron Reels)	29,417 lbs. (13,343 kg)
Working Width	30 ft. 0 in. (9.1 m)
Transport Width	12 ft. 0 in. (3.7 m)
Transport Height	13 ft. 2 in. (4.0 m)
Operating Depth Range	2 in. to 5 in. (50.8 to 127 mm)
Number of Blades - Front	37
Number of Blades - Rear	36
Blade Diameter	24 in. (610 mm)
Blade Thickness	0.25 in. (6.35 mm)
Blade Concavity	3 in. (76.2 mm)
Blade Spacing - Front and Rear	10 in.
Disc Angle - Front and Rear	Pre-Set Non-Adjustable Compound Angle
Number of Disc Bearings - Front	37
Number of Disc Bearings - Rear	36
Disc Protection	Torsion Mounted
Disc Bearings	Individually Mounted with 5-Lip Seal
Frame Construction	Laser Cut/Matchcut Components, Robotically Welded
Transport Axles	5.5 in. (140 mm) with UHMW Maintenance Free Pivots
Wing Axles	Walking Tandem
Main Frame Tires	(2) 710/40R x 22.5 Tires
Main Frame Spindles	4 in. (102 mm) Slip-In Spindles
Main Frame Hubs	10-Bolt
Wing Frame Tires	(4) 32/1550 x 16.5 Tires
Wing Frame Spindles	3 in. (76.2 mm) Slip-In Spindles
Wing Frame Hubs	8-Bolt
Hitch Type	Floating Hitch
Hitch Category	Cat IV. Single Lip Ball Hitch with 2 in. (50.8 mm) Hole
Machine Depth Control	Single Point, Front Mounted Depth Control
Safety Warning Lights and SMV Emblem	Standard
Safety Chain Kit	Standard
Adjustment Wrenches	Standard
Powder Coat Paint, Blue Sapphire	Standard
Cat. V Single Lip Hitch with 3 in. Hole	Optional
Spare Tire and Wheel for Center Section	Optional
Horsepower Requirements	15 to 17 HP (11 to 13 kW) per Foot

Specifications subject to change with or without notice.
