Landoll 8530-30

Double tap to zoom

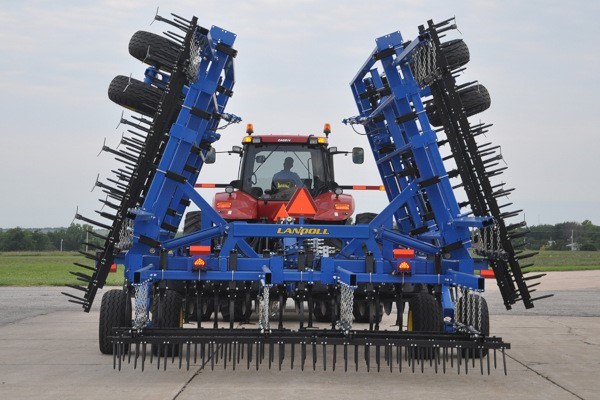

8500 Series Finisholl

8530-30

Overview:

The redesigned 8530 Finisholl from Landoll provides unmatched residue clearance and even distribution for the ultimate in soil finishing.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Laser Cut, Robotically Welded Frame
Self-Leveling Hitch
Single Point Depth Control
7 ½ Degree Wing Flex Up and Down
Rock Flex Disc Bearing Standards
Hydraulic Gang Depth Adjustment
22” Low Concavity Disc Blades Spaced at 7 ½”
8 Degree Gang Angle
“Split the Middle” Shank Placement – 8” Spacing
Spring Clamp Shanks with 190 lbs. Point Load
Two-Piece S-Tine Shanks with 190 lbs. Point Load
25 ½” of Under Frame Clearance
Heavy-Duty Tires and Wheels with Maintenance-Free Lift Axle
Four Styles of Finishing Attachments Available
Folds for Narrow Transport Widths
Blue Powder Coat Paint
LED Safety Warning Lights

Specifications

Model	8530-30
Approximate Weight - Spring Shanks	20,810 lbs. (9,439 kg)
Approximate Weight - S-Tine Shanks	20,135 lbs. (9,133 kg)
Working Width	30 ft. 0 in. (9.1 m)
Transport Width	14 ft. 11 in. (4.5 m)
Transport Height	13 ft. 9 in. (4.2 m)
Number of Shanks	45
Shank Type	Spring Clamp Shanks or 2-Piece S-Tine Shanks
Shank Type	Flat
Shank Size	0.625 x 1.75 in. (15.9 x 44.5 mm)
Point Load	190 lbs. (86 kg)
Shank Spacing	8 in. (203 mm)
Sweeps	9 in. (229 mm)
Under Frame Clearance	25.5 in. (648 mm)
Number of Blades	48
Blade Diameter	22 in. (559 mm)
Blade Thickness	0.25 in. (6.35 mm)
Blade Concavity	Shallow Concavity 1.3 in. (33 mm)
Blade Spacing	7.5 in. (191 mm)
Blade Scrapers	4.5 in. (114 mm) Adjustable
Gang Protection	Rock Flex Mount
Gang Angle	8 Degree
Gang Shaft	1.75 in. (44.5 mm) Round
Gang Bearings	Trunnion Mount with Greaseable Triple Lip Seals
Frame	6 in. x 2 in. x 0.25 in. (152 x 51 x 6.4 mm)
Frame Construction	Laser Cut/Matchcut Components, Robotically Welded
Wing Flex	7.5 Degrees Up or Down
Transport Axles	5.5 in. (140 mm) Lift Axles
Main Frame Axles	Walking Tandem
Wing Frame Axles	Walking Tandem
Main Frame Tires	(4) 380/55R x 16.5 Tires
Main Frame Spindles	3 in. (76.2mm) Slip-In Spindles
Main Frame Hubs	8-Bolt
Wing Frame Tires	(4) 12.5L x 15, 12 Ply Tires
Wing Frame Spindles	2.25 in. (57.2 mm) Slip-In Spindles
Wing Frame Hubs	8-Bolt
Hitch Type	Self Leveling with Manual Adjustment
Hitch Category	Cat. III Single Lip
Machine Depth Control	Single Point Adjustment
Safety Warning Lights and SMV Emblem	Standard
Safety Chain Kit	Standard
Powder Coat Paint, Blue Sapphire	Standard
Rear Hitch With Hydraulic Hoses	Optional
22 in. x 1/4 in. Rollable Blades	Optional
10 in. Ultra Wing Sweeps	Optional
Cat. III Single Lip Hitch	NA
Cat. IV Single Lip Hitch	Optional
Flexible 5-Row Spike Harrow	Optional
Chopper and Three Row Spike Drag	Optional
Three Row Spike and Reel Attachment	Optional
Three Row Tine and Reel Attachment	Optional
Horsepower Requirements	8 to 10 HP (6 to 7 kW) per Foot
