Landoll 877-15

Double tap to zoom

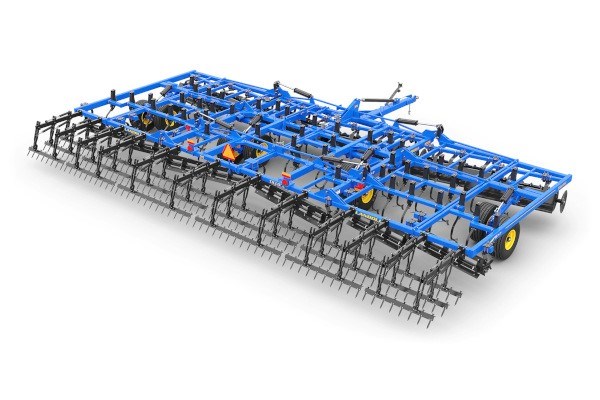

877 SERIES TILLOLL

877-15

Overview:

Reduce field trips and save money with the Landoll 877 Tilloll. Level, incorporate, and bring soil to a nearly perfect planting condition in one pass.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

20” Concave Disc Blades Spaced at 7 ½”
10 Degree Gang Angle
Reversible Scrapers
C-Cushion Bearing Standards with 1 ½” Gang Bolt
Soil Deflector/Spray Shield on Disc Gangs
Spring Clamp Shanks with 170 lbs. of Point Load
25 ½” Under Frame Clearance
9” Shank Spacing
10” Sweeps
Chopper Reel and Spike Leveling Attachment
16” 5-Blade Reel Mounted on Trunnion Bearings and C-Cushion Bearing Standards
Chopper Mounted at 10 Degree Angle to Return Dirt from Front Gangs
3-Bar Spike Drag with Adjustable Spring Down Pressure and Tooth Angle
Single Lip Cat. III or Cat. IV Hitch, Model Dependent
Walking Tandem Wheels, Heavy-Duty Hubs and Spindles
Single Point Depth Control
Edge Bent Shanks
Sapphire Blue Powder Coat Paint
tSafety Warning Lights

Specifications

Product Attributes	877-15
Approximate Weight	8,920 lbs. (4,046 kg)
Working Width	15 ft. 0 in. (4.6 m)
Transport Width	16 ft. 6 in. (5.0 m)
Transport Height	N/A
Type of Fold	Non-Folding
Number of Shanks	20
Shank Type	Spring Clamp, Edge Bent Shank
Shank Size	0.5625 in. x 1.75 in. (14.3 x 44.5 mm)
Point Load	170 lbs. (77 kg)
Shank Spacing	9 in. (229 mm)
Under Frame Clearance	25.5 in. (648 mm)
Sweeps	10 in. (254 mm)
Number of Blades	24
Soil Deflector/Spray Shield	Mounted Behind Gangs
Blade Diameter	20 in. (508 mm)
Blade Thickness	0.197 in. (5.0 mm)
Blade Concavity	Low Concavity
Blade Spacing	7.5 in. (191 mm)
Reversible Blade Scrapers	4 in. x 0.25 in. (102 x 6.35 mm)
Gang Protection	C-Cushion
Gang Angle	10 Degree
Gang Shaft	1.5 in. (38.1 mm)
Gang Bearings	1.5 in. (38.1 mm) Flange Type Greaseable
Chopper Reel and 3-Bar Spike Drag	Standard
Chopper Reel Size	16 in. (406 mm) Diameter
Chopper Reel Bars	5-Bar, 0.281 x 4 in. (7.1 x 102 mm) Beveled
Chopper Reel Bearings	Trunnion Bearings with C-Flex Protection
Chopper Reel Angle	Mounted at 10 Degree Angle
3-Bar Spike Drag	Adjustable Down Pressure
3-Bar Spike Drag Angle	Adjustable
Spike Size	0.75 in. x 11 in. (19.0 x 0279 mm)
Spike Spacing	Spaced on 2.5 in. (63.5 mm) Centers
Frame Construction	Laser Cut/Matchcut Components, Robotically Welded
Walking Tandems	Standard in All Locations
Tire Size - Main Frame	(4) 280/70R x 15 Radial
Wheel Hubs - Main Frame	6-Bolt
Spindles - Main Frame	2.25 in. (57.2 mm) Slip-In Spindles
Tire Size - Wing Frame	N/A
Wheel Hubs - Wing Frame	N/A
Spindles - Wing Frame	N/A
Hitch Category	Cat. III Single Lip
Machine Depth Control	Single Point Depth Control
Safety Warning Lights and SMV Emblem	Standard
Safety Chain Kit	Standard
Powder Coat Paint, Blue Sapphire	Standard
10 in. Ultra Wing Sweeps	Optional
Cat. IV Single Lip Hitch Clevis	Optional
Cat. V Single Lip Hitch Clevis	N/A
Spare Tire and Wheel Assembly	Optional
Horsepower Requirements	11 to 12 HP (8 to 9 kW) per Foot
