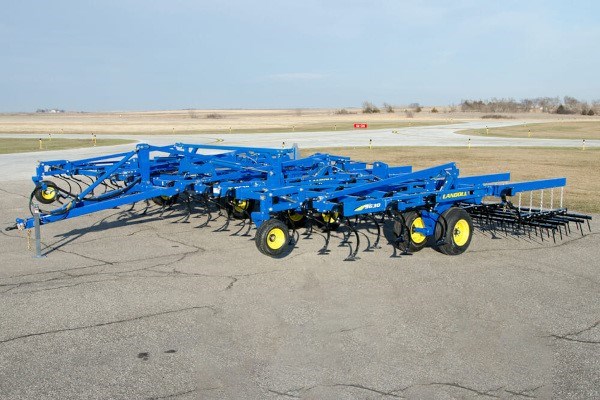

9630-24
Overview:
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Laser Cut, Robotically Welded Frame
- 135” Frame Depth
- 30” Minimum Between Shank Ranks
- Self-Leveling Hitch
- Cast Single Lip Hitch Cat. III or Cat. IV (Model Dependent)
- Outrigger Gauge Wheels on 28’ - 50’ Models
- Shanks with 190 lbs. Point Load (Spring Clamp or Two Piece S-Tine)
- 26 ½” Under Frame Clearance
- 6” Shank Spacing
- 8” Sweeps, 47 degree
- Shanks Centered on Tires
- Walking Tandems in All Locations
- 11L x 15-12 Ply, 12.5L x 15-12 Ply, 12.5L x 15 Load Range F (Model Dependent)
- Single Point Depth Control
- Blue Powder Coat Paint
- Safety Warning Lights
Specifications
| Model | 9630-24 |
| Hitch Style | Self-Leveling Hitch |
| Approximate Weight - Spring Shanks | 10,165 lbs. (4,611 kg) |
| Approximate Weight - S-Tine Shanks | 9,430 lbs. (4,277 kg) |
| Working Width | 24 ft. 6 in. (7.5 m) |
| Transport Width | 15 ft. 6 in. (4.7 m) |
| Transport Height | 11 ft. 1 in. (3.4 m) |
| Number of Shanks | 49 |
| Number of Shanks per Section | 13--23--13 |
| Shank Type | Spring Clamp Shanks or 2-Piece S-Tine Shanks |
| Shank Size | 0.625 in. x 1.75 in. (15.9 x 44.5 mm) On Edge |
| Point Load | 190 lbs. (86 kg) |
| Spring Shank Tower | Laser Cut/Matchcut Components |
| Spring Shank Pivots | Nitrotec Coated Inter-Locking Clamp Bushing |
| Spring Size | 0.46875 in. (11.9 mm) Wire Diameter |
| Shank Spacing | 6 in. (152 mm), Split the Middle Pattern |
| Spacing Between Shank Rows | 30 in. (762 mm) Minimum |
| Shank Position | Rear Shanks Centered on Tires |
| Sweeps | 8 in. (203 mm) with 47 Degree Mount |
| Under Frame Clearance | 26.5 in. (673 mm) |
| Fore-to-Aft Depth | 135 in. (3.4 m) |
| Frame | 3 in. x 4 in. x 0.25 in. (76.2 x 102 x 6.4 mm) |
| Frame Construction | Laser Cut/Matchcut Components, Robotically Welded |
| Frame Type | Truss Type with Wrapped Shank Tube Joints |
| Transport Lift Axles | 4.5 in. (114 mm) Axle with Tower Lift System |
| Walking Tandems | Standard with Maintenance Free Pivot Bushings |
| Tire Size - Main Frame | (4) 280/70Rx15 Radial Tires |
| Wheel Hubs - Main Frame | 6-Bolt |
| Spindles - Main Frame | 2.25 in. (57.2 mm) Slip-In Spindles |
| Tire Size - Wing Frame | (4) 280/70Rx15 Radial Tires |
| Wheel Hubs - Wing Frame | 6-Bolt |
| Spindles - Wing Frame | 2.25 in. (57.2 mm) Slip-In Spindles |
| Hitch Type | Self-Leveling with Manual Adjustment |
| Hitch Category | Cat. III Ball Hitch |
| Machine Depth Control | Single Point, Front Mounted |
| Hydraulics | 10 in. (254 mm) Stroke Cylinders |
| Gauge Wheels | Optional |
| Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Blue Sapphire | Standard |
| Rear Hitch with Hydraulic Hoses | Optional |
| Cat. V Ball Hitch | N/A |
| 9 in. Sweeps | Optional |
| 8 in. Ultra Wing Sweeps | Optional |
| 9 in. Ultra Wing Sweeps | Optional |
| Spare Tire and Wheel | Optional |
| Flexible Five Row Spike Harrow | Optional |
| Four Row Coil Tine Harrow | Optional |
| Three Row Spike and Reel | Optional |
| Three Row Tine and Reel | Optional |
| Horsepower Requirements | 7 to 9 HP (5 to 7 kW) Per Foot |
Specifications subject to change with or without
