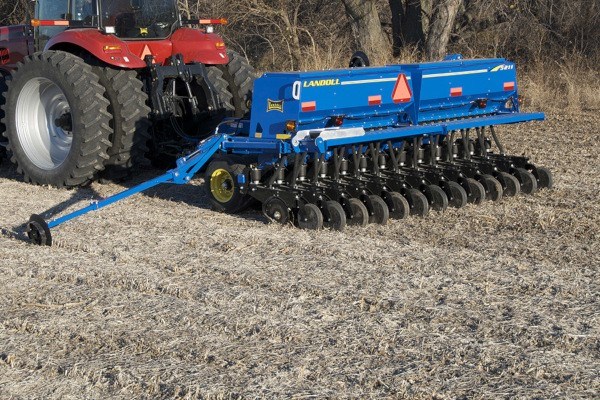

5211 Series Rigid Drill, Grain Hopper
5211-20x7.5
Overview:
Seeding innovation is at its finest with the Grain Drill line-up from Landoll. Built tough to easily handle conventional tilled soil all the way to no-till conditions.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Features for the Finest in Seeding Innovation
- State of the Art Laser Cut and Robotically Welded Main Frame and Hitches
- Rigid Frames on 10′, 12 1/2′, 15′ and 20′ Models
- Front Folding Frames on 30′, 40′ and 50′ Models
- All Tires are in Front of Frame
- Row Units Raise Independently from Frame
- UHMW Pivots on Lift System
- Cat. III or Cat. IV Single Lip Hitches (Model Dependent)
- Pneumatic Down Pressure (Adjustable from 120 to 400 lbs.)
- Maintenance Free Pivots on Openers
- 15.8” x 3.5 mm Opener Blades
- Blades Configured “Heads Up” for Decreased Wear on Openers
- Poly Soil Hold Down Strips Clean Openers and Control Opener Blow-Out
- Planter Style Seed Drop Tubes
- Swivel Type Press Wheels with 2” x 13” Smooth or 3” x 13” Double Rib Tires
- 3.25 bu./ft. Grain Only Seed Box Capacity
- Grain with Dry Fertilizer: 2 bu./ft. Grain Capacity with 105 lbs./ft. Fertilizer Capacity
- Small Grass Seed Option: .33 bu./ft. Capacity and Equipped with Brillion Micro-Meters
- New Fluted Seed Meters
- Inline Box Design with 12 Degree Down and 15 Degree Flex
- Weight Package for Wings
- 320/70R x 15 Radial Tires for Rigid Models
- 380/55R x 16.5 Radial Tires on Center Frame of 30′ & 40′ Folding Models
- 480/45R x 17 Radial Tires on Center Frame of 50′ Folding Models
- 280/70R x 15 Radial Tires on Wings of 30′, 40′ & 50′ Folding Models
- Slip-In Spindles in All Locations on All Models
- Monitor with Acre Meter, Seed Tube Flow Sensors, Bin Level Sensors
- On-Board 12 Volt Air Compressor
- Blue Powder Coat Paint
- LED Safety Warning Lights
Specifications
| Model | 5211-20x7.5 |
| Approximate Weight | 13,172 lbs. (5,975 kg) |
| Working Width | 20 ft. 0 in. (6.1 m) |
| Transport Width | 20 ft. 0 in. (6.1 m) |
| Opener Spacing | 7.5 in. (191 mm) |
| Number of Openers | 32 |
| Frame | 7 in. x 7 in. x 0.375 in. (178 x 178 x 9.5 mm) |
| Frame Construction | Laser Cut/Matchcut Components, Robotically Welded |
| Frame Type | Weighted Main Frame |
| Three-Point Hitch | Cat. III |
| Weighted Pull-Type Hitch | Cat. III Single-Lip |
| Transport Tire Size | (4) 11L x 15, 12 Ply |
| Wheel Hubs | 6-Bolt |
| Spindles | 2 in. (50.8 mm) Slip-In Spindles |
| Drive Chain | Enclosed #50 Chain |
| Transport Wheel Mount | In Front of Openers |
| Row Unit Type | Pneumatically Adjustable Down Pressure |
| Row Unit Adjustment Range | 120 to 400 lbs. (54 to 181 kg) |
| Disc Opener Type | Double Disc Openers |
| Disc Opener Style | Heads Up Alignment |
| Disc Type | Smooth |
| Disc Size | 15.8 in. x 0.1383 in. (400 x 3.5 mm) |
| Disc Bearing | #205 Bearing |
| Opener Pivots | Maintenance Free Pivot Points |
| Seed Tubes | Poly, Planter Type Seed Tubes |
| Opener Tenders | Flat Spring Backed Poly Soil Hold Strips |
| Press Wheels | Swivel Type |
| Press Wheel Sizes | 2 in. x 13 in. (50.8 x 330 mm) Smooth or 3 in. x 13 in. (76.2 x 330 mm) Double Rib |
| Hopper Construction | All Welded 14 ga. Steel |
| Hopper Lids | All Steel Formed Lids with Latches |
| Meter Type | Externally Fluted |
| Grain Hopper Capacity | 3.25 Bushel per Foot |
| Integral Folding Ladder | Standard |
| Integral Fold-Up Walk Boards | Standard |
| On-Board 12V Air Compressor | Standard |
| Monitor with Acre Meter, Seed Tube Sensors, Bin Level Sensors | Standard |
| Safety Warning Lights and SMV Emblem | Standard |
| Safety Chain Kit (Pull-Type Models) | Standard |
| Powder Coat Paint, Blue Sapphire | Standard |
| Seed Meter Plug | Optional |
| Hydraulic Row Markers | Optional |
| Double Lip Hitch Clevis (Pull-Type Models) | Optional |
| Rear Hitch Package | Optional |
| Coulter Hitch | N/A |
| Horsepower Requirements | 7 to 10 HP (5 to 7 kW) per Foot |
