216
Overview:

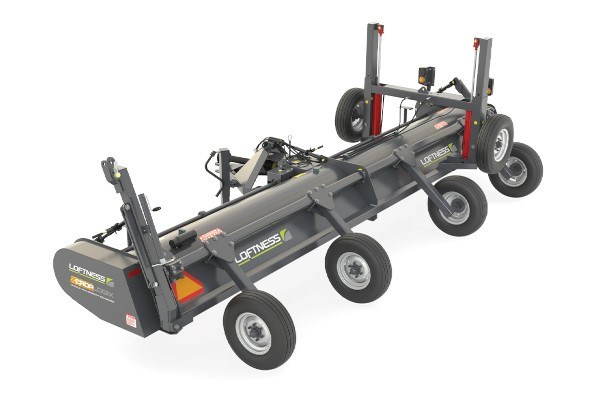

Residue management causes a lot of wear on equipment. But Loftness® crop shredders withstand the tough operating environment. Featuring a time-tested design, Loftness 12- to 22- foot crop shredders are built with unmatched dedication to quality engineering and craftsmanship. No other shredder will give you the on-demand performance like our line of multi-crop shredders.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Heavy-Duty Construction
The standard crop shredder line features heavy-duty design, engineering and construction throughout. - Ratchet or Hydraulic Rear Lift
Loftness crop shredders provide precise height adjustment for fine tuning performance and chop. Rear lifting choices include ratchets or hydraulic cylinders. - 280-Horsepower Rated Gearbox
A standard feature on all Loftness shredder equipment, this field-proven and extremely reliable gearbox is rated at 280 HP. Rotor speeds available are 1,450, 1,700 or 2,000 RPM. - 1,000 RPM PTO
1-3/8-inch or 1-3/4-inch 1,000 RPM power takeoff. Includes over-running clutch on all models and constant velocity knuckle on all pull-types. - Knife Options
The Standard 12/22 comes equipped with Loftness high residue knives, perfect for corn, wheat, sorghum, grasses and more. It can also be configured with any of our other optional knife sets: - Multiple Mounting Configurations
The 12/22 crop shredders can be configured as pull-type, semi- or fully-mounted models. - 4- or 6-Groove Banded Belt
Efficient transfer of power via a four- or six-groove banded belt and spring loaded push-type idler system. - Wheel Spacing
Wheel position is adjustable to accommodate different row widths. - Wheel and Tire Configurations
Configurations for the 12/22 include up to four rigid or swivel wheels and two front rigid wheels with ratchets. - Optional Hydraulic Transport System
Factory-installed, this feature is available on the pull-type and fully-mounted models, except those equipped with bed rollers. Lifts all the support tires off the ground, making transport easy. Includes transport hitch. - Optional Transport Hitch
Folding transport hitch includes jack stand.
Specifications
Pull-Type With Rigid Rear Wheels
| Model | 216 |
| Size | 18' |
| Pull-type Height | 36" |
| Pull-type Length | 135" |
| Cutting Width | 216" |
| Overall Width | 235" |
| Hitch Length | 40" |
| Weight in Pounds | 5400 |
| Number of Knives (High Residue/Cotton) | 208 |
| Number of Knives (Cupped) | 108 |
| Number of Rotors | 2 |
Fully-Mounted With Rigid Rear Wheels
| Model | 216 |
| Size | 18' |
| Fully-mounted Height | 48" |
| Fully-mounted Length | 106" |
| Cutting Width | 216" |
| Overall Width | 235" |
| Hitch Length | 12" |
| Weight in Pounds | 5400 |
| Number of Knives (High Residue/Cotton) | 208 |
| Number of Knives (Cupped) | 108 |
| Number of Rotors | 2 |
Fully-Mounted/Semi-Mounted With Swivels On Rear Only
| Model | 216 |
| Size | 18' |
| Fully-mounted Height | 48" |
| Fully-mounted Length | 126" |
| Cutting Width | 216" |
| Overall Width | 235" |
| Hitch Length | 12" |
| Weight in Pounds | 5400 |
| Number of Knives (High Residue/Cotton) | 208 |
| Number of Knives (Cupped) | 108 |
| Number of Rotors | 2 |
Fully/Semi-Mounted With Swivels On Rear & Rigid Front Wheels
| Model | 216 |
| Size | 18' |
| Fully-mounted Height | 48" |
| Fully-mounted Length | 145" |
| Cutting Width | 216" |
| Overall Width | 235" |
| Hitch Length | 12" |
| Weight in Pounds | 5400 |
| Number of Knives (High Residue/Cotton) | 208 |
| Number of Knives (Cupped) | 108 |
| Number of Rotors | 2 |
