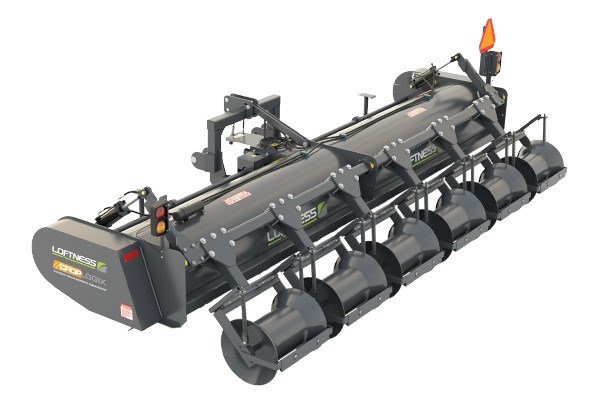

Vegetable 12/24 Shredder

216

PRINT

Overview:

Made for Your Beds

Specially designed bed rollers gauge the height of the cut from the top of the bed for increased accuracy. The bed rollers also help push any uncovered vegetables into the ground to reduce exposure to the sun.

Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

  • Heavy-Duty Construction
    The vegetable crop shredder line features heavy-duty design, engineering and construction throughout.
  • Ratchet or Hydraulic Rear Lift
    Loftness vegetable shredders provide precise height adjustment for fine tuning performance and chop. Rear lifting choices include ratchets or hydraulic cylinders.
  • Specialized Bed Rollers
    Specially designed bed rollers gauge the height of the cut from the top of the bed for more accurate cutting. The bed rollers also help push any uncovered vegetables into the ground to reduce exposure to the sun. Configurations for the 12/24 with bed rollers must use a fully-mounted hitch.
  • Contour Knives
    The Vegetable 12/24 shredder comes equipped with Loftness contour knives. There are three lengths of knives to follow ridges. Contour knives are available for 34-, 36-, 38-, 40-, 42- and 44-inch beds.
  • 280-Horsepower Rated Gearbox
    A standard feature on all Loftness shredder equipment, this field-proven and extremely reliable gearbox is rated at 280 HP. It turns the rotor at 1,450 RPM.
  • 1,000 RPM PTO
    Available with a 1-3/8-inch or 1-3/4-inch 1,000 RPM power takeoff. Includes over-running clutch on all models and constant velocity knuckle on all pull-types. Slip clutch is optional for extreme-duty applications.
  • Multiple Mounting Configurations
    The vegetable shredders can be configured as pull-type, semi- or fully-mounted models.
  • 4- or 6-Groove Banded Belt
    Efficient transfer of power via a four- or six-groove banded belt and spring loaded push-type idler system.
  • 1-3/4″ Driveline Bearings
    A heavy-duty 1-3/4-inch American-made ball bearing is used to support the line shaft midway between the gearbox and end plate.
  • Optional Transport System
    A transport system can be added to vegetable shredders with wheels.
  • Adjustable Rear Wheel Options

Specifications

Size18'
Model216
Fully-mounted Height48"
Fully-mounted Length98"
Cutting Width216"
Overall Width235"
Hitch Length12"
Weight in Pounds5400
Number of Rotors2
Number of Knives on 30" Bed
(Contour Knives)		Call For Specs
Number of Knives on 32" Bed
(Contour Knives)		Call For Specs
Number of Knives on 34" Bed
(Contour Knives)		6" - 36
8" - 24
10" - 36
Number of Knives on 36" Bed
(Contour Knives)		6" - 36
8" - 24
10" - 36
Number of Knives on 38" Bed
(Contour Knives)		6" - 36
8" - 24
10" - 36
Number of Knives on 40" Bed
(Contour Knives)		Call For Specs
Number of Knives on 42" Bed
(Contour Knives)		Call For Specs
Number of Knives on 44" Bed
(Contour Knives)		Call For Specs
Number of Knives on 46" Bed
(Contour Knives)		Call For Specs
Number of Knives on 48" Bed
(Contour Knives)		Call For Specs
