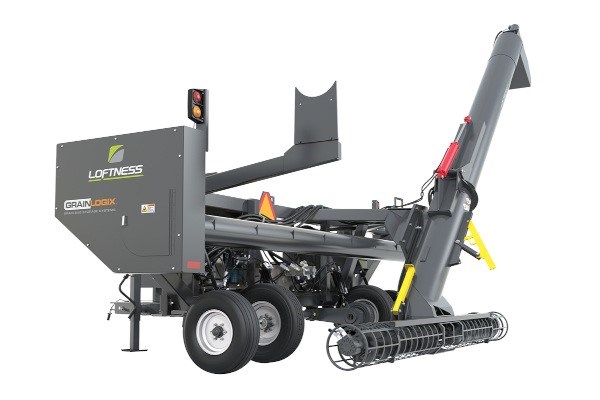

12-Foot Grain Bag Unloader
GBU 12
Overview:
To achieve load transfer rates of 12,000 bushels per hour, the GBU12 utilizes a 20-inch main auger made with 1/4-inch flighting.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Main Auger
Built around abrasion resistant 1/4-inch steel flighting, the main auger is supported by two 7/16-inch bearings. Like all GBU12 augers, they are computer balanced and factory tuned for the highest possible performance. The main auger and auger tube is hinged for transport and storage. - Folding Auger Design
Foldable for storage, the main auger is controlled through the use of a hydraulic cylinder. The main auger hinge point is precise and robust, precision welded and self centered. Self-aligning top bearings ensure that the auger shafts align and that the male-female drive couplers engage every time. - Cross Augers
The 12-inch-diameter cross augers feed material to the discharge auger. Two hydraulic motors deliver power to drive material to the center of the bag. - Hydraulic System
The main hydraulic system holds 70 gallons of hydraulic fluid. It includes a return filtration system to reduce wear and also a cold-weather bypass. - Inline Hydraulic Pumps
At the core of the hydraulic system rests the inline hydraulic pump configuration. Each pump is dedicated to an individual task: cross-feed augers, the main discharge auger, and system cooling and accessories. - Hydraulic Cooling
The GBU12 cooling system has proven itself under the most adverse heat conditions. The reason: a hydraulically driven oil fan cooler. The cooling system also features automatic bypass based on pressure. - Bag Roller
A highly successful and proven design from Loftness, the bag roller is 19.5 feet wide and capped on either end with 23-inch discs to ensure the empty bag stays on track. Welded teeth spaced along the entire roller shaft ensure that the leading edge of the bag is captured securely and squarely. The system features a high-torque, hydraulically driven and controlled design. - Bag Roller Chain Drive
The entire roller drive assembly was designed to provide the power and torque needed for the 12-foot bag unloading process. Hydraulic motor power is increased, and speed is reduced through a dual-width chain, triple reduction drive system. The massive power of the roller drive system pulls the tractor and unloader into the grain. - Bag Roller Clutch
The operator can simply disengage the roller drive by hand and the bag can then be rolled off the bag roller tube. No tools required. - Operator Controls
The multifunction controls offer easy ground level access, and precisely regulate the bag roller speed, adjust the axle height and retract or extend the hinged main auger. - Dual Position Knife
Different grain and seed types differ in weight, thus changing the shape of the bag. The knife can be positioned to match any bag shape. - Adjustable Axle Height
An adjustable axle with mechanical stops provides consistent height of cross augers. - Travel Axle
A heavy-duty axle with electric brakes for over road reliability. It quickly raises the machine for transport to the next site. - Split Shaft Drive
The GBU12 drivetrain system utilizes a center supported dual shaft design that ensures balance and stability under heavy power loads. This setup uses shear-bolt protected Walterscheid W2400 series PTO shafts. - 13.5-Foot Unloading Auger Clearance Height
- Worm Gear Roller Drive Gearbox
- Hydraulic Spout Deflector
- Bag Roller Hooks
- Safety Warning Lights
- Optional 10-Foot Bag Unloading Kit
The GBL12 can be modified for unloading 10-foot-diameter grain bags. - Optional Work Light Kit
Don’t let the dark slow down your unloading operation. The optional work light kit includes three magnetically mounted LED lights, each producing 2,400 lumens.
Specifications
| Model Number | GBU 12 Standard |
| Operating Weight | 11,010 lbs |
| Operating Dimensions | |
| Length | 17' 5" |
| Width | 27' 2" |
| Height | 17' 2" |
| Storage/Travel Dimensions | |
| Length | 17' 5" |
| Width | 21' 6" |
| Height | 11' 4" |
| PTO | |
| RPM | 1,000 |
| Horsepower | 150 |
| Shaft Size/Type | 1-3/8 or 1-3/4 |
| PTO Driveline Type | Walterscheid W2400 |
| Auger Sizes | |
| Primary Auger | 20" / 540 RPM |
| Wheels/Tires | |
| Operating | 245/70R-17.5 40" O.A. Dia. |
| Transport | 235/75R 17.5 Highway Rated 40" O.A. Dia. |
| Transport Braking System | Electrical Trailer Brakes |
| Performance | |
| Transfer Capacity | 12,000 Bushels/hr |
| Bag Handling Capacity | |
| Diameter | 12' or 10' Bags |
| Max. Length | 500' |
| Pump | |
| Pump Drive Gearbox | 125 HP Step Up |
| Pumps | Triple Gear Pump |
| Controls | On/Off Valves for Augers Stack Valve for Auxiliary Functions |
