Loftness Stone Ax Stone Crusher

Double tap to zoom

Skid Steer Attachments

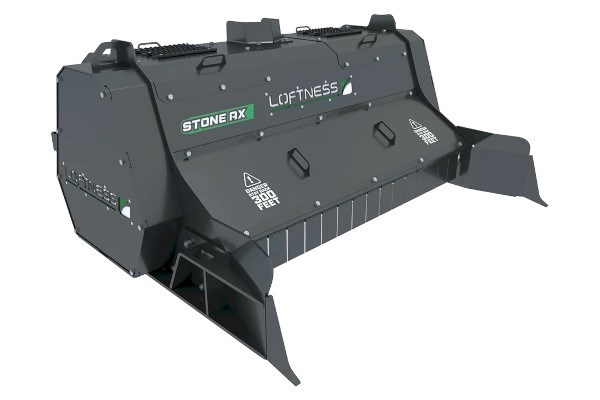

Stone Ax Stone Crusher

Overview:

Skid Steer / Compact Track Loader

Whether you’re cleaning up farmland, preparing a construction site or improving a back road, nothing gets the job done like Loftness. With a six-inch stone capacity and four-inch working depth, our stone crusher attachment is designed to work harder, last longer and perform better than anything else. Because if it didn’t…our name wouldn’t be on it.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Radial Piston Motor
A large 275cc radial piston motor provides plenty of power to help create some of the finest crush sizes in the industry.

Large-Diameter Rotor
The large-diameter rotor has a specialized tooth pattern to help complete jobs faster, while providing excellent rotor balance.

Carbide Teeth
The rotor is equipped with durable carbide teeth, which can be easily replaced on the jobsite as needed.

Adjustable Anvil
An adjustable front anvil helps control how aggressively rocks are processed.

Rear Hydraulic Door
Adjust crushing performance on the fly by changing the clearance of the rear hydraulic door.

Performance Monitoring
An integrated PSI gauge that monitors the hydraulic load is positioned for easy viewing from the skid steer cab. It helps keep the Stone Ax at the optimum hydraulic load for peak performance throughout an application.

Heavy-Duty Construction
Large bearings, a Hardox® lined body, 1-inch steel drum walls and a heavy-duty belt drive offer outstanding durability.

Bearing Protection
Bearings are protected against jobsite abuse for longer life.

Specifications

Stone Ax Stone Crusher
Overall Length	81" (2.1 m)
Overall Width	66" (1.7 m)
Working Width	63" (1.6 m)
Max Working Depth	4" (10.1 cm)
Max Stone Size	6" (15.2 cm)
Rotor Diameter	20" (0.5 m)
Number of Teeth	46
Drum Wall Thickness	1" (2.5 cm)
Rotor Bearing Diameter	2.5" (6.4 cm)
Hydraulic Horsepower Range	80-110 Hydraulic HP
Radial Piston Motor	34-50 GPM up to 5,000 PSI
