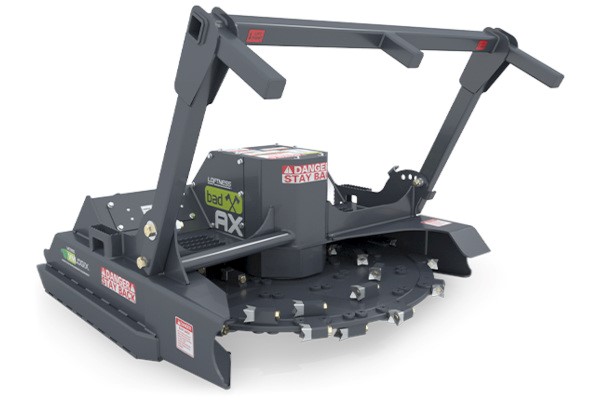

60BA
Overview:
Skid Steer / Compact Track Loader
The Bad Ax isn’t just another disc mulcher. It’s been engineered for superior weight balance, durability and performance. And, of course, it’s backed by Loftness’ superior customer support and large dealer network. All of these things add up to make the Bad Ax the disc mulcher of choice for land clearing, vegetation management, forest fire prevention and more.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Radial Piston High-Pressure Motor
The radial piston high-pressure motor provides instant torque at start-up for fast recovery times. It requires 36-50 GPM up to 5000 PSI and 70-120 hydraulic horsepower. - Fully Machined Disc
The Bad Ax can cut down trees up to 14 inches in diameter using a 60-inch diameter disc. The fully machined disc is 1.25 inches thick using premium-strength steel, and it contains no welds, so there are no points subject to stress cracking.
The large Bad Ax disc builds up its own inertia during use, pushing its productive force beyond the maximum hydraulic horsepower. This helps it more quickly gather and process vegetation. It has a 200 MPH tip speed at up to 1100 RPM. - Recutter Bar
The Bad Ax uses a recutter bar along with stationary counter teeth to hold material in place while it is being mulched. This unique design allows the Bad Ax to cut material into finer particles for faster decomposition and produce a nicer looking end product. It also helps avoid log jams in the chamber, which can be extremely difficult to remove in competitive units. - Bolt-on Replaceable Teeth and Tooth Mounts
Quadco teeth are attached to the mulching disc using bolt-on mounts. These make the teeth easy to rotate, replace and remove while on the jobsite. Additionally, the bolt-on mounts can be replaced in the field without the need for cutting, welding or rebalancing the rotor. - Quadco Blades
Reversible with ultra-sharp, heat-treated steel knife edges, the Quadco blades effortlessly slice through trees and vegetation, as opposed to shredding and tearing. They can be rotated on site for a fresh cutting edge, or sharpened to maintain efficiency. - Bearing Anti-Wrap Protection
A precise labyrinth ring design helps keep debris from entering the bearing chamber. - Controlled Discharge Deflector
The discharge deflector directs material down and away from the machine, helping to protect the equipment and operator. Unlike competitive hinged designs, the Bad Ax uses a rigid deflector for better control of the discharge. - Specialized Housing Design
The sides of the Bad Ax housing are parallel. This design provides optimal control when compared with funnel, or V-shaped, disc mulchers, which can be easily misdirected when hooking onto stumps or other solid objects. Additionally, the front of the housing is angled, allowing the teeth to mulch at ground level. - Adjustable Tree-Pusher Bar
Featuring welded claw hooks, the bar is used to push falling trees away from the power unit and to position material for proper feeding into the mulching disc. Unlike many other disc mulchers, the pusher bar on the Bad Ax can be adjusted to meet the needs of the jobsite. - Pressure Gauge
A rubber-mounted pressure gauge allows the operator to easily monitor the workload from the skid steer cab. - Anti-Cavitation Shutdown Circuit
An integrated anti-cavitation shutdown circuit protects motor during shutdown. - Premium Strength Steel Body and Disc
The entire Bad Ax body and disc are constructed of premium high-strength steel for maximum durability.\ - Universal Skid-Steer Mount
The disc mulcher easily pairs with a wide variety of brands and models of skid steers and compact track loaders. Hoses are included, but couplers are not. - 2-Year Warranty
The Bad Ax comes standard with an industry-leading 2-year warranty.
Specifications
| Model | 60BA |
| Cutting Width | 60" (1.52 m) |
| Overall Width | 67" (1.70 m) |
| Number of Teeth | 44 |
| Weight | 2,643 LBS (1,198.8 kg) |
| Auxiliary Hydraulic Flow (Up To 5,000 PSI) | 36-50 GPM |
| Hydraulic Horsepower Range | 70-120 |
| Radial Piston Motor Max Hydraulic Pressure | 5,000 PSI |
| Disc Speed | 1,1-0 RPM/200+ MPH (321.9 kph) Tip Speed |
