Loftness 25BX10

Double tap to zoom

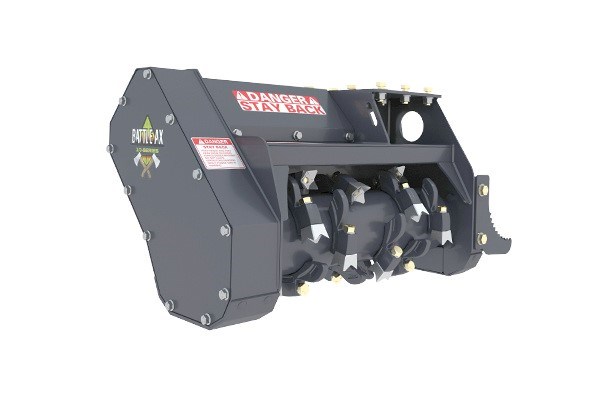

Battle Ax – 10 Series

25BX10

Overview:

7,000-10,000 lb Excavators

Even compact excavators can take advantage of the awesome power of the Battle Ax. Despite being the smallest model in the line, the 10 Series still packs a punch, thanks to its depth gauge design and Loftness® exclusive two-stage cutting chamber. It’s tough enough to carry the Loftness name, and we’re confident enough in its performance to back it with an industry-leading warranty.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Depth Gauges
The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw.
Two-Stage Cutting Chamber
Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes. The primary shear bar is adjustable for controlling particle sizes.
Convenient Tooth Mounting
The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket.
High-Performance Teeth Options
Choose from 4-point beaver teeth, Quadco reversible planer teeth or Double Carbide Teeth.
Fixed-Displacement Gear Motor
The 10 Series Battle Ax features a 45cc high-pressure gear motor for excavators with hydraulic systems ranging from 15 to 19.9 gallons per minute and up to 4,100 PSI (20 to 70 hydraulic horsepower). This reliable motor turns the rotor from 1,750 to 2,300 RPM.
2-Band Belt Drive
A two-groove banded belt system efficiently transfers power to the rotor.
Machined Anti-Wrap Bearing Protection
Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber.
Premium Strength Steel Housing
The Battle Ax is constructed of high-strength steel to withstand some of the toughest operating conditions.
Steel Deflector Chains
Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris.
Optional Spade Hook/Hydraulic Thumb
The spade hook is a useful tool for positioning material to be mulched. A hydraulic thumb is also optional for added versatility.
Multiple Mounting Options
A variety of mounts are available for attaching the Battle Ax to any make of excavator. Pin-on and pin grabber styles are available, as well as blank plates.
13.5-Inch-Diameter Rotor
1-3/4″ Piloted Double Taper Roller Bearings
2-Year Warranty
The Battle Ax comes standard with an industry-leading 2-year warranty.

Specifications

Model	25BX10
Cutting Width	25" (0.64 m)
Recommended Excavator Weight Range (in Pounds)	7,000-10,000
Overall Width	45" (1.14 m)
Number of Teeth	16
Weight (without mount)	620 LBS (281.2 kg)
Hydraulic Horsepower Range	20-70
Hydraulic Flow Range	15-19.9 GPM
