Loftness BT20

Double tap to zoom

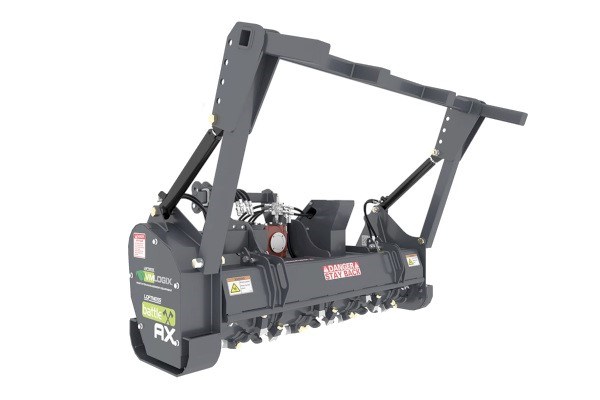

Battle Ax Tractor

BT20

Overview:

Harness the performance of the Battle Ax with your existing tractor. Compatible with 540 RPM PTO tractors with 30 to 70 PTO horsepower, the Battle Ax Tractor mulching attachment uses its unique rotor design to efficiently mulch unwanted vegetation on your property. Plus, the Loftness® exclusive two-stage cutting chamber helps you process material more thoroughly and more consistently for quicker decomposition and a nicer look, if desired.

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Depth Gauges
The Battle Ax rotor design uses built-in depth gauges to control cutting depth, like raker teeth on a chainsaw.
Two-Stage Cutting Chamber
Two shear bars allow the Battle Ax to produce a finer mulch with fewer passes.
Convenient Tooth Mounting
The cutting teeth are mounted to the rotor with a single bolt. They can be easily reversed, replaced or removed on the jobsite using a common hex socket.
High-Performance Teeth Options
Choose from 4-point beaver teeth, Quadco reversible planer blades or double carbide teeth.
Staggered/Spiral Tooth Pattern
This exclusive tooth arrangement ensures single-tooth contact with the work surface at all times while maintaining optimal rotor balance.
3-Point Hitch
The Battle Ax Tractor hitch is adaptable from Cat I to Cat II, free-link or quick hitch. The mulcher can be centered or positioned 16 inches offset to the right.
PTO Kickout
A cam-type PTO kickout protects the gearbox from damage without a clutch pack.
Machined Anti-Wrap Bearing Protection
Rotor ends are machine turned to mate with close tolerance, machined anti-wrap rings, which minimize debris in the bearing chamber.
Premium Strength Steel Housing
The Battle Ax is constructed of high-strength steel to withstand some of the toughest operating conditions.
Steel Deflector Chains
Running the entire length of the mulching attachment, steel deflector chains improve safety by reducing flying debris.
Adjustable Push Bar (Optional)
A manually adjustable tree pusher bar with welded claw hooks is available.
Containment Door (Optional)
A containment door option helps prevent the mulcher from projecting material underneath the tractor.
Deflector Door (Optional)
The Battle Ax Tractor can be equipped with a deflector door for more thorough processing and direct discharge toward the ground.
13.5-Inch Cutting Tip Diameter
3-B Section Banded Belt With Spring-Loaded Tensioner
1/4″ End Plates
3/16″ Hood
1-3/4″ Piloted Double Taper Roller Bearings
2-Year Warranty
The Battle Ax comes standard with an industry-leading 2-year warranty.

Specifications

Model	BT20
Cutting Width	61" (1.6 m)
Overall Width	77" (1.8 m)
Number of Teeth	38
Weight (Includes Hydraulic Pusher)	1,675 lbs (760 kg)
Deflector Door Weight (Optional)	86 lbs (39 kg)
Containment Door Weight (Optional)	207 lbs (94 kg)
PTO Horsepower Range	30-70
