Features

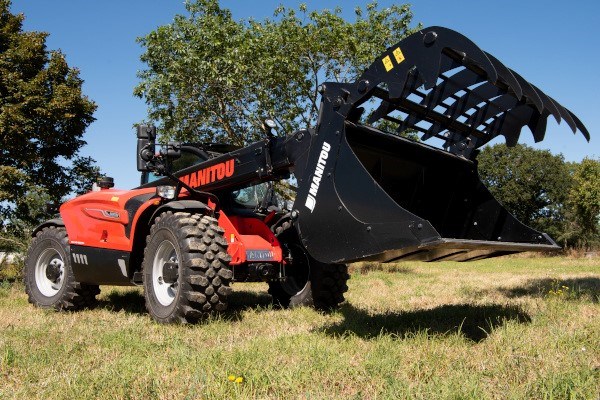

If you are looking for a more comfortable, efficient and cost-effective machine working at great heights, the MLT 1041-145 PS+ L NewAg XL is for you! Dedicated to intensive agricultural handling, it has a lifting height of 31'8" 99.65 m) and a lifting capacity of 9,000 lbs. (4.1 t). The Comfort XL: this machine offers a new soundproof cab (69 dBA - the quietest cab on the market) with easy step access, optimal visibility, JSM® (Joystick Switch and Move) on a floating armrest, DSB (Double Switch Buttons) and an automatic parking brake. For even more comfort, a new adaptive air suspension seat with heating and electric lumbar adjustment is also available as an option. The Performance XL: This machine delivers exceptional results even on the most demanding applications thanks to its 141 hp Yanmar engine (602 Nm max. torque) and M-Shift transmission. Its tilt control, limited slip differential on front and rear axles, 17 in (43 cm) ground clearance and automatic radiator cleaning system are perfectly adapted to intensive agricultural use. A wide choice of tires is also available to optimize your efficiency in all working environments. New hydraulic functions and a 53 gpm (200 l/min) variable flow pump ensure a very high level of productivity, and for even more performance, the HighView camera (+10% loading productivity), Comfort Steering System (+12% loading productivity) and trailer braking (hydraulic, pneumatic) are among the options available. XL Profitability: this machine has been specifically designed to reduce its total cost of ownership (TCO), notably by optimizing fuel consumption and machine maintenance (e.g. centralized lubrication points, etc.). Manitou also offers you the Easy Manager connected solution to manage, optimize and secure the machine. For even greater profitability, the Ecostop intelligent engine stop and automatic lubrication system are available as options to reduce your total cost of ownership (TCO).
Specifications
| Capacities | |
| Max. capacity | 9039 lb |
| Max. lifting height | 31 ft 8 in |
| Max. outreach | 21 ft 4 in |
| Reach at max. height | 4 ft 11 in |
| Breakout force with bucket | 5043 daN |
| Weight and dimensions | |
| Unladen weight (with forks) | 21363 lb |
| Ground clearance | 1 ft 5 in |
| Wheelbase | 9 ft 5 in |
| Overall length to carriage (with hitch) | 17 ft 1 in |
| Overall length to carriage (without hitch) | 16 ft 6 in |
| Front overhang | 4 ft 3 in |
| Overall width | 7 ft 10 in |
| Overall cab width | 3 ft 3 in |
| Overall height | 7 ft 11 in |
| Tilt-down angle | 135 ° |
| Tilt-up angle | 12 ° |
| External turning radius (over tyres) | 12 ft 3 in |
| Standard tires | Michelin - XMCL - 460/70 R24 159A8 |
| Drive wheels (front / rear) | 2 / 2 |
| Steering wheels (front / rear) | 2 / 2 |
| Frame leveling corrector | 7 ° |
| Performances | |
| Lifting | 6.60 s |
| Lowering | 4.70 s |
| Extension | 9.50 s |
| Retraction | 6.90 s |
| Crowd | 3.70 s |
| Dump | 2.80 s |
| Engine | |
| Engine brand | Yanmar |
| Engine norm | Stage V / Tier 4 Final |
| Engine model | 4TN107FHT-5SMUF |
| Number of cylinders - Capacity of cylinders | 4 - 279 in³ |
| I.C. Engine power rating / Power | 141 Hp / 105 kW |
| Max. torque / Engine rotation | 444 ft/lbs @1500 rpm |
| Drawbar pull (Laden) | 9130 daN |
| Reversible fan | Standard |
| Engine cooling system | 4 radiators (water + intercooler + hydraulic oil + transmission oil) |
| Transmission | |
| Transmission type | Torque converter with powershift gearbox |
| Gearbox | M-Shift |
| Number of gears (forward / reverse) | 5 / 3 |
| Max. travel speed (may vary according to applicable regulations) | 25 mph |
| Differential lock | Limited slip differential on front and rear axles |
| Parking brake | Automatic negative parking brake |
| Service brake | Oil-immersed multi-discs braking on front & rear axles |
| Hydraulics | |
| Hydraulic pump type | Variable displacement pump |
| Hydraulic flow - Pressure | 53 US gpm - 3916 PSI |
| Flow sharing distributor | Standard |
| Tank capacities | |
| Fuel tank | 38 US gal |
| Diesel Exhaust fluid (AdBlue® type) | 6 US gal |
| Noise and vibration | |
| Noise at driving position (LpA) tested following NF EN 12053 norm | 69 dB |
| Noise to environment (LwA) | 105 dB |
| Vibration on hands/arms | < 2.50 m/s² |
| Miscellaneous | |
| Tractor homologation | Tractor homologation |
| Safety cab homologation | Cabin ROPS - FOPS level 2 |
| Controls | JSM |
