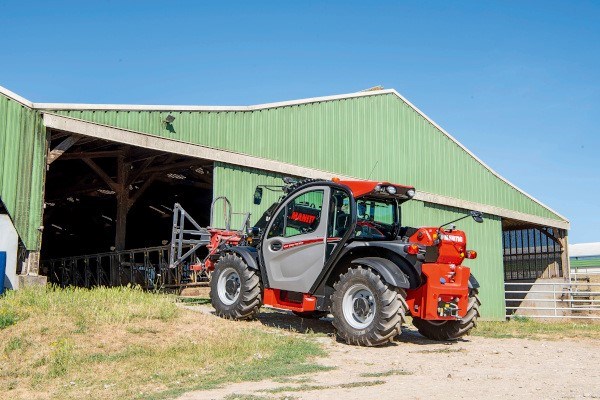

Manitou MLT 630-115 V CP (S2)

Double tap to zoom

MLT

MLT 630-115 V CP (S2)

Overview:

Max. capacity: 6614 lb
Max. lifting height: 20 ft 1 in
Breakout force with bucket: 5671 daN
Ground clearance: 11 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Dedicated to the agricultural market, the MLT 630-115 V CP telescopic handler combines compactness and performance. It has a lift height of 6.11 m and a capacity of 3,000 kg. These features make this model perfectly adapted to work in restricted areas, either inside or outside farm buildings.

Comfort first and foremost: this model features a high-visibility grille, easy access to the driver's cab and a range of standard equipment (wide screen, JSM joystick on floating armrest, etc.).

Performance first and foremost: with a 116 hp engine, M-Varioshift transmission and 106 l/min hydraulic flow, the MLT 630-115 V CP saves you time on a daily basis. Its all-terrain capabilities, radiator cleaning system and air pre-filter make it an ideal solution for agricultural environments.

Profitability first and foremost: easy access to the machine's main components, connected machine as standard, optimized fuel consumption (Stop & Start function)... every effort has been made to actively improve your farm's profitability.

Specifications

Capacities
Max. capacity	6614 lb
Max. lifting height	20 ft 1 in
Max. outreach	11 ft 6 in
Reach at max. height	2 ft 11 in
Breakout force with bucket	5671 daN
Weight and dimensions
Unladen weight (with forks)	14595 lb
Ground clearance	11 in
Wheelbase	8 ft 10 in
Overall length to carriage (with hitch)	15 ft 11 in
Overall length to carriage (without hitch)	15 ft 2 in
Front overhang	4 ft 4 in
Overall width	6 ft 9 in
Overall cab width	3 ft 1 in
Overall height	7 ft
Tilt-down angle	133 °
Tilt-up angle	14 °
External turning radius (over tyres)	12 ft
Standard tires	Alliance - A580 - 400/70 R20 149A8
Drive wheels (front / rear)	2 / 2
Steering wheels (front / rear)	2 / 2
Performances
Lifting	6.10 s
Lowering	5.10 s
Extension	6.30 s
Retraction	5.70 s
Crowd	4.10 s
Dump	3.30 s
Engine
Engine brand	Deutz
Engine norm	Stage V
Engine model	TCD 3.6 L4
Number of cylinders - Capacity of cylinders	4 - 221 in³
I.C. Engine power rating / Power	116 Hp / 85 kW
Max. torque / Engine rotation	339 ft/lbs @1600 rpm
Drawbar pull (Laden)	6580 daN
Reversible fan	Standard
Engine cooling system	4 radiators (water + intercooler + oil + fuel)
HVO validated (according to EN 15940 standard)	Yes
Transmission
Transmission type	M-Varioshift
Number of gears (forward / reverse)	2 / 2
Max. travel speed (may vary according to applicable regulations)	24 mph
Differential lock	Limited slip differential on front axle
Parking brake	Manual
Service brake	Oil-Immersed multi-discs braking on front axles
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow - Pressure	28 US gpm - 3626 PSI
Flow sharing distributor	Option
Tank capacities
Hydraulic tank capacity	25 US gal
Fuel tank	21 US gal
Diesel Exhaust fluid (AdBlue® type)	3 US gal
Noise and vibration
Noise at driving position (LpA) tested following NF EN 12053 norm	73 dB
Vibration on hands/arms	< 8 ft/s²
Miscellaneous
Tractor homologation	Tractor homologation
Safety cab homologation	Cabin ROPS - FOPS level 2
Controls	JSM
