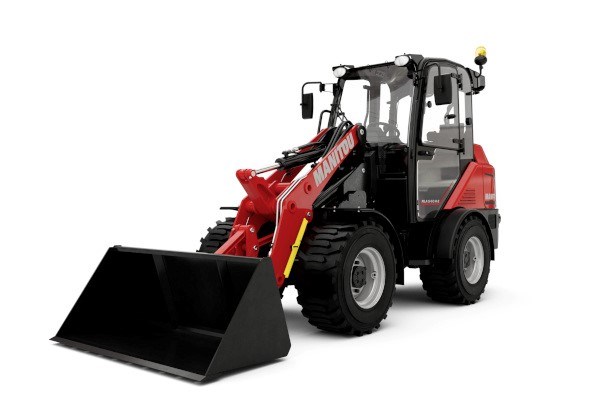

Manitou MLA 5-60 H-Z

Double tap to zoom

MLA/MLA-T

MLA 5-60 H-Z

Overview:

Static tipping load with forks (straight): 3411 lb
Static tipping load with bucket (straight): 4828 lb
Max. height of bucket pivot point: 10 ft 4 in
Engine power (kW): 45.50 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MLA 5-60 H-Z is the smallest of our lineup to have our Z-kinematic loaderarm, giving you unmatched break-out forces. The latest of our Articulated Loader lineup comes with an open canopy with additional options available in 2021. The 2-speed hydrostatic transmission, 100% diff lock and hand throttle is standard, making the MLA 5-55 have all the features you need for excellent performance and comfort. Small machine, big power.

Specifications

Capacities
Static tipping load with bucket (straight)	4828 lb
Static tipping load with bucket (full turn)	3735 lb
Static tipping load with forks (straight)	3411 lb
Static tipping load with forks (full turn)	2654 lb
Max. height of bucket pivot point	10 ft 4 in
Max. lifting height (below forks)	9 ft 9 in
Reach at max. height	1 ft 5 in
Breakout force with bucket	4329.46 daN
Weight and dimensions
Unladen weight (with forks) with 4-post canopy	7470 lb
Overall length to carriage (with hitch)	13 ft 9 in
Wheelbase	69 in
Overall width of 4 posts canopy	4 ft
Overall cab width	4 ft
Overall height with 4 posts canopy	7 ft 7 in
Overall height with cab	7 ft 7 in
Tilt-up angle	39.90 °
Tilt-down angle	44.70 °
Articulation angle	45 °
Overall width less bucket	4 ft 10 in
Ground clearance	10 in
Performances
Crowd	2.52 s
Dump	1.85 s
Engine
Engine brand	Deutz
Engine model	TD 2.2 L3
Engine norm	Stage V / Tier 4 Final
Number of cylinders / Capacity of cylinders	3 - 21 in³
Engine power (Hp / kW)	60 Hp / 45.50 kW
Max. torque / Engine rotation	148 ft/lbs / 2400 rpm
Engine cooling system	2 radiators water + hydraulic oil
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed (may vary according to applicable regulations)	18 mph
Differential lock	Front and rear locking of the machine
Parking brake	Manual
Service brake	Hydraulic drum brake on front axle, acting on all 4 wheels
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow - Pressure	15 US gpm / 3046 PSI
High-Flow Option (l/min)	19 US gpm
Drive hydraulic system pressure	6092 PSI
Tank capacities
Hydraulic oil	12 US gal
Fuel tank	22 US gal
Miscellaneous
Cab certification	ROPS - FOPS cab (level 1)
