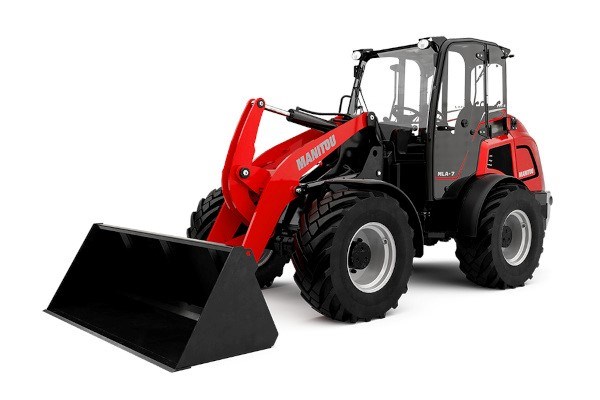

Manitou MLA 7-75 H-Z

Double tap to zoom

MLA/MLA-T

MLA 7-75 H-Z

Overview:

Static tipping load with forks (straight): 6043 lb
Static tipping load with bucket (straight): 7447 lb
Max. height of bucket pivot point: 11 ft 5 in
Engine power (kW): 55.40 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The Manitou MLA 7-75 is the largest wheel loader in the range with a standard lift arm. Similar to the smaller units, this machine did not make compromises in terms of comfort and performance! The hydrostatic transmission is smooth at low speed and very powerful in demanding circumstances. With gearshift and 100% diff lock controls on the joystick, the operator is always in control. With optional 30 kph and lift arm suspension, the MLA 7-75 will bring you in full comfort from one jobsite to another. The Z-bar loader linkage gives you the extra break-out force, return to dig and parallel guidance. Whether in agricultural or in construction environment, this wheel loader performs at its best in tough conditions and never lets you down.

Specifications

Capacities
Static tipping load with bucket (straight)	7447 lb
Static tipping load with bucket (full turn)	5778 lb
Static tipping load with forks (straight)	6043 lb
Static tipping load with forks (full turn)	4793 lb
Max. height of bucket pivot point	11 ft 5 in
Max. lifting height (below forks)	10 ft 9 in
Breakout force with bucket	5906 daN
Weight and dimensions
Unladen weight (with forks) with 4-post canopy	10540 lb
Unladen weight (with forks)	10919 lb
Wheelbase	6 ft 9 in
Overall width of 4 posts canopy	4 ft 2 in
Overall cab width	4 ft 2 in
Overall height with FOPS removed and ROPS folded	6 ft 6 in
Overall height with 4 posts canopy	8 ft 2 in
Overall height with cab	8 ft 2 in
Tilt-up angle	45 °
Tilt-down angle	45 °
Articulation angle	45 °
Overall width less bucket	5 ft 9 in
Overall length - Less Bucket	14 ft 7 in
Ground clearance	1 ft
Engine
Engine brand	Deutz
Engine model	TD3.6 L4
Engine norm	Stage IIIB
Number of cylinders / Capacity of cylinders	4 - 220 in³
Engine power (Hp / kW)	74.30 Hp / 55.40 kW
Max. torque / Engine rotation	243 ft/lbs / 1600 rpm
Engine cooling system	2 radiators water + hydraulic oil
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed (may vary according to applicable regulations)	19 mph
Travel speed (laden)	12 mph
Differential lock	Front and rear locking of the machine
Parking brake	Manual
Service brake	Hydraulic drum brake on front axle, acting on all 4 wheels
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow - Pressure	18 US gpm / 2901 PSI
High-Flow Option (l/min)	29 US gpm
Drive hydraulic system pressure	5511 PSI
Tank capacities
Hydraulic oil	20 US gal
Fuel tank	27 US gal
Noise and vibration
Vibration on hands/arms	< 8 ft/s²
Miscellaneous
Cab certification	ROPS - FOPS cab (level 1)
