Manitou MLA-T 516-75 H

Double tap to zoom

MLA/MLA-T

MLA-T 516-75 H

Overview:

Static tipping load with forks (straight): 6023 lb
Static tipping load with bucket (straight): 7793 lb
Max. height of bucket pivot point: 16 ft 6 in
Engine power (kW): 55.40 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

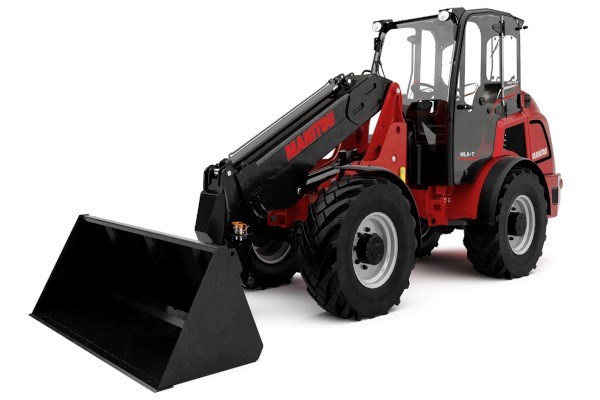

The Manitou MLA-T 516-75 smaller telescopic wheel loader, combines its strength within the telescopic boom and the agility of an articulated chassis. This gives the operator the maneuverability that is often requested when working inside buildings together with the extra reach that has become a bullet point in modern farms. This machine shares similar features to the MLA 7-75, where comfort and performance are key. The hydrostatic transmission gives power and smoothness when requested. True 360° visibility will allow the operator to gain productivity in safe conditions. The operator station is fully adjustable and exceeds all modern levels of comfort. The MLA-T 516-75 H has flow sharing hydraulics with combined movements and total control for the operator as a result.

Specifications

Capacities
Static tipping load with bucket (straight)	7793 lb
Static tipping load with forks (straight)	6023 lb
Static tipping load with forks (full turn)	4409 lb
Max. payload with forks as per EN 474-3 (80%)	3527 lb
Max. height of bucket pivot point	16 ft 6 in
Max. lifting height (below forks)	15 ft 11 in
Maximum outreach	10 ft 10 in
Weight and dimensions
Unladen weight (with forks) with 4-post canopy	12220 lb
Overall width of 4 posts canopy	4 ft 2 in
Overall cab width	4 ft 2 in
Overall height with 4 posts canopy	8 ft 2 in
Articulation angle	44 °
Overall width less bucket	5 ft 9 in
Overall length - Less Bucket	16 ft 3 in
Ground clearance	1 ft
Engine
Engine brand	Deutz
Engine model	TD 3.6 L4
Engine norm	Stage IIIB, Tier 4
Number of cylinders / Capacity of cylinders	4 - 220 in³
Engine power (Hp / kW)	74.30 Hp / 55.40 kW
Max. torque / Engine rotation	243 ft/lbs / 1600 rpm
Engine cooling system	2 radiators water + hydraulic oil
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed (may vary according to applicable regulations)	19 mph
Travel speed (laden)	12 mph
Differential lock	Front and rear locking of the machine
Parking brake	Manual
Service brake	Hydraulic drum brake on front axle, acting on all 4 wheels
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow - Pressure	18 US gpm / 2901 PSI
High-Flow Option (l/min)	29 US gpm
Drive hydraulic system pressure	5511 PSI
Tank capacities
Hydraulic oil	20 US gal
Fuel tank	27 US gal
Noise and vibration
Vibration on hands/arms	< 8 ft/s²
Miscellaneous
Cab certification	ROPS - FOPS cab (level 1)
