MLA/MLA-T

MLA-T 533-145 V+ - ST5

PRINT

Overview:

Static tipping load with forks (straight):  10975 lb
Engine power (kW):  105 kW

Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

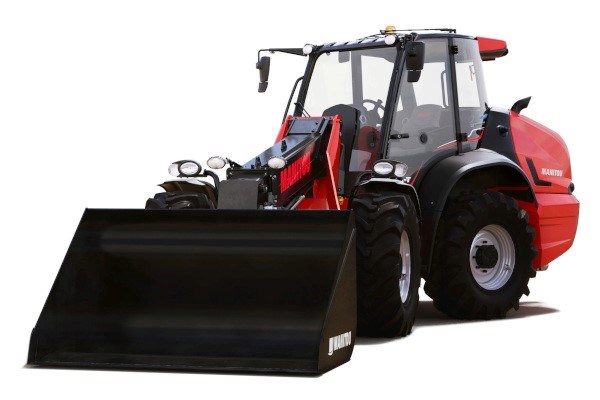

The MLA-T 533-145 V + is the newest articulated telescopic loaders designed by Manitou. With a telescopic boom to cushion the jolts while traveling with or without load, the 533-145 V + makes your daily handling jobs easier. It's designed with innovative features on the agricultural market such as; 4 wheel drive and steering, 45 degree articulation, connected system, possibility of changing attachments in just a few seconds (buckets, clamps, forks ...) to overall increase productivity on the jobsite. This all-terrain telescopic loader has flow sharing hydraulics with combined movements and total control for the operator as a result. The MLA T-533-145 V+, fits all your requirements to effectively help you in all of your handling operations.

Specifications

Capacities
Static tipping load with forks (straight)10975 lb
Static tipping load with forks (full turn)9143 lb
Max. payload with forks as per EN 474-3 (80%)7275 lb
Max. lifting height (below forks)17 ft 1 in
Maximum outreach10 ft 10 in
Reach at max. height3 ft 11 in
Breakout force with bucket6730 daN
Weight and dimensions
Unladen weight (with forks)18585 lb
Wheelbase8 ft 2 in
Overall height with cab8 ft 10 in
Tilt-up angle9 °
Tilt-down angle156 °
Articulation angle45 °
Overall width less bucket7 ft 6 in
Overall length - Less Bucket18 ft 9 in
Standard tiresAlliance - A580 - 460/70 R24 159A8
Ground clearance1 ft 3 in
Performances
Crowd3.50 s
Dump2.70 s
Engine
Engine brandDeutz
Engine modelTCD_4_1_L4
Engine normStage V
Number of cylinders / Capacity of cylinders4 - 246 in³
Engine power (Hp / kW)143 Hp / 105 kW
Max. torque / Engine rotation406 ft/lbs / 1600 rpm
Engine cooling system3 radiators water + intercooler + hydraulic oil
Transmission
Transmission typeM-Varioshift
Max. travel speed (may vary according to applicable regulations)25 mph
Differential lockLimited slip differential on front and rear axles
Parking brakeManual
Service brakeHydraulic drum brake on front axle, acting on all 4 wheels
Hydraulics
Hydraulic pump typeVariable displacement pump
Hydraulic flow - Pressure42 US gpm / 3916 PSI
Tank capacities
Hydraulic oil40 US gal
Fuel tank40 US gal
Diesel Exhaust fluid (AdBlue® type)3 US gal
Noise and vibration
Noise at driving position (LpA) tested following NF EN 12053 norm72 dB
Noise to environment (LwA)107 dB
Vibration on hands/arms< 8 ft/s²
Miscellaneous
Cab certificationCabin ROPS - FOPS level 2
