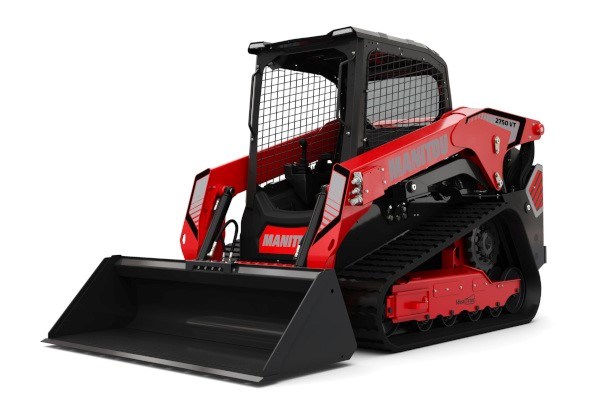

Manitou 2750VT

Double tap to zoom

Compact Track Loaders

2750VT

Overview:

Rated Operating Capacity: 2750 lb
Overall Operating Height - Fully Raised: 168 in
Dump reach - Full height: 35 in
Overall length with bucket: 150 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

New from Manitou a robust range of vertical lift loaders to perform in the most demanding conditions. The vertical lift arms allow you to dump material further into large trucks,Increased fuel capacity and fast travel speeds provide agility and endurance to increase productivity.

The large cabin design, featuring several Manitou exclusive benefits, offers more comfort and ergonomics. Enhanced visibility provides the operator the ability for more precision in maneuvering tight areas. The flip-up cooler and cab also reduce customer TCO and offer top-of class service access making maintenance work easier than ever.

The 2750VT track loader is designed and tested for performance to deliver productivity. With 3,929 lbs (1 782 kg) of operating capacity, 72 horsepower and up to 8.4 mph (13,5 km/h) the 2750VT is perfect for construction and ag applications.

Specifications

Capacities
Rated Operating Capacity	2750 lb
Operating Capacity At 50% Tipping Load	3929 lb
Rated Operating Capacity with Optional Counterweight	2870 lb
Operating Weight	10051 lb
Unladen weight	9138 lb
Weight and dimensions
Overall Operating Height - Fully Raised	168 in
Height to Hinge Pin - Fully Raised	129 in
Overall Height to top of ROPS	82 in
Dump angle at full height	42 °
Dump height	99 in
Overall length with bucket	150 in
Dump reach - Full height	35 in
Rollback Angle at Full Height	92 °
Seat to ground height	39 in
Overall width less bucket	71 in
Ground clearance	9 in
Overall length - Less Bucket	119 in
Clearance Radius - Front with Bucket	93 in
Rear departure angle	30 °
Performances
Travel speed (unladen)	6 mph
Travel Speed with Two-Speed Option - Maximum	8 mph
Wheels
Transmission type	Hydrostatic
Engine
Engine brand	Yanmar
Engine model	4TNV98CT-XNGL
Engine norm	Tier 4
Max. torque / Engine rotation	217 ft/lbs / 1800 rpm
Power source	Diesel
Number of cylinders	4
Engine power (Hp / kW)	72 Hp / 52.70 kW
Engine cooling system	Water
Battery voltage	12 V
Alternator - Ampere	100 A
Starter	3 kW
Hydraulics
Standard flow - Auxiliary hydraulics	26 US gpm
Auxiliary Hydraulic Pressure	3475 PSI
High-Flow Auxiliary Hydraulics - Option	33 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option	3325 PSI
Tank capacities
Fuel tank	38 US gal
Hydraulic tank capacity	6 US gal
Liquid cooling tank volume	5 US gal
