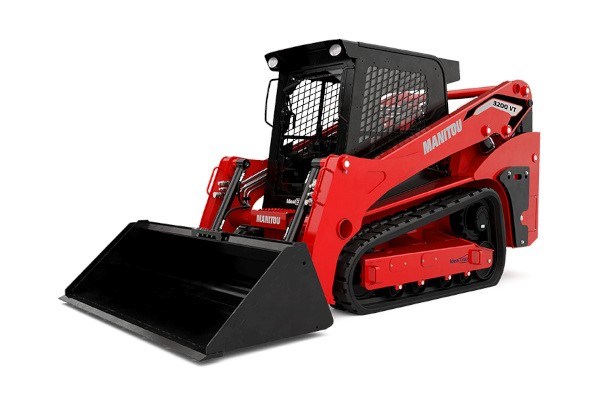

Manitou 3200VT

Double tap to zoom

Compact Track Loaders

3200VT

Overview:

Overall Operating Height - Fully Raised: 169 in
Dump reach - Full height: 40 in
Overall length with bucket: 160 in
Overall width less bucket: 70 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Enjoy improved full-sized performance of 3200 VT vertical-lift track loader. This model can easily work in hard to access areas on the jobsite nomatter the soil conditions. Combining compactness, robustness, accuracy and speed of movement, the 3200 VT track loader enables you to excavate the land or load up 2074 kg rated operating capacity with optional counterweight. Many other applications are possible thanks to the ability to change attachments within minutes. This track loader meets the requirements of building professionals, industry and agriculture.

Specifications

Capacities
Max. capacity	9145 lb
Operating Weight	11612 lb
Operating Capacity at 35% Tipping Load	3201 lb
Operating Capacity At 50% Tipping Load	4572 lb
Tipping capacity	9145 lb
Weight and dimensions
Overall Operating Height - Fully Raised	169 in
Height to Hinge Pin - Fully Raised	130 in
Dump reach - Full height	40 in
Dump angle at full height	41 °
Dump Height - Fully Raised	100 in
Maximum Rollback Angle - Fully Raised	90 °
Overall Height to top of ROPS	83 in
Overall length with bucket	160 in
Departure angle	24 °
Overall Length without Bucket	128 in
Specified Height	76 in
Reach at Specified Height	30 in
Dump angle at specified height	68 °
Carry Position	8 in
Maximum Rollback Angle at Carry Position	31 °
Digging Position	0.75 in
Angle of Departure with STD Counterweight	24 °
Ground clearance	12 in
Track gauge	52 in
Track Shoe Width	18 in
Crawler base	62 in
Overall width less bucket	70 in
Bucket Width	84 in
Clearance Radius - Front with Bucket	96 in
Angle of Approach	90 °
Grouser Height	1 in
Track Type / Track Rollers / Roller Type	Rubber / 5 / Steel
Performances
Ground Speed - Single Speed	5 mph
Ground Speed - Two Speed	8 mph
Drawbar Pull/Tractive Effort	12769 lb
Bucket Breakout - Tilt Cylinder	9903 lb
Bucket Breakout - Lift Cylinder	7491 lb
Engine
Engine brand	Deutz
Engine model	TD 3.6
Motor Type	Axial Piston with Planetary Gear Box Reduction
Engine power (Hp)	114 Hp
Engine power (kW)	85 kW
Max. torque	317 ft/lbs
Battery voltage	12 V
Cold Cranking Amps at Temperature (CCA)	950 A
Alternator - Voltage / Ampere	14 V / 95 A
Hydraulics
Standard flow - Auxiliary hydraulics	27 US gpm
High-Flow Auxiliary Hydraulics - Option	38 US gpm
Tank capacities
Oil Pan Capacity	2 US gal
Hydraulic tank capacity	17 US gal
Fuel tank	32 US gal
Liquid cooling tank volume	5 US gal
Displacement / Number of cylinders	0.95 US gal / 4
Miscellaneous
Ground Pressure	5 PSI
