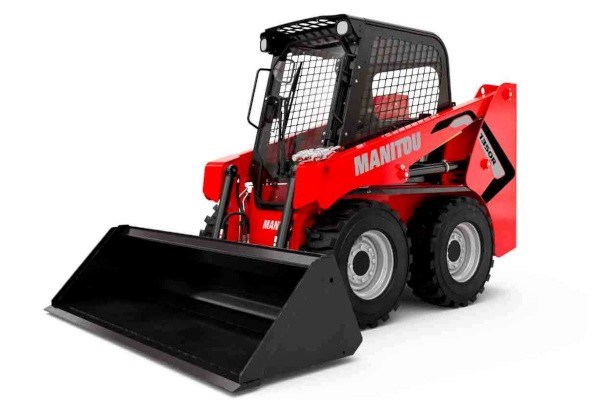

Manitou 1350R NXT2

Double tap to zoom

Skid Steer Loaders

1350R NXT2

Overview:

Rated Operating Capacity: 1349 lb
Overall Operating Height - Fully Raised: 144 in
Dump reach - Full height: 23 in
Overall length with bucket: 121 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Sorry, currently there are no features but check back with us later.

Specifications

Capacities
Rated Operating Capacity	1349 lb
Rated Operating Capacity with Optional Counterweight	1499 lb
Unladen weight	5256 lb
Weight and dimensions
Wheelbase	37 in
Overall Operating Height - Fully Raised	144 in
Height to Hinge Pin - Fully Raised	110 in
Overall Height to top of ROPS	76 in
Dump angle at full height	40 °
Dump height	84 in
Overall length with bucket	121 in
Dump reach - Full height	23 in
Rollback at ground	28 °
Seat to ground height	34 in
Overall width less bucket	54 in
Bucket Width	54 in
Ground clearance	8 in
Overall length - Less Bucket	93 in
Departure angle	25 °
Clearance Radius - Front with Bucket	73 in
Rear departure angle	25 °
Performances
Travel speed (unladen)	8 mph
Wheels
Standard tires	10.00 x 16.5 HD
Engine
Engine brand	Yanmar
Engine model	4TNV88C-KMS
Engine norm	Tier 4
Max. torque / Engine rotation	108 ft/lbs / 2800 rpm
Power source	Diesel
Engine power (Hp / kW)	46 Hp / 34.30 kW
Battery voltage	12 V
Alternator	100 kW
Starter	2.30 kW
Hydraulics
Standard flow - Auxiliary hydraulics	17 US gpm
Auxiliary Hydraulic Pressure	3002 PSI
Tank capacities
Fuel tank	16 US gal
Hydraulic tank capacity	9 US gal
Displacement	0.58 US gal
Liquid cooling tank volume	2 US gal
Noise and vibration
Noise to environment (LwA)	82 dB
Noise at driving position (LpA)	100 dB
Whole-Body Vibration (ISO 2631-1)	3 ft/s²
Vibration on hands/arms	< 6 ft/s²
