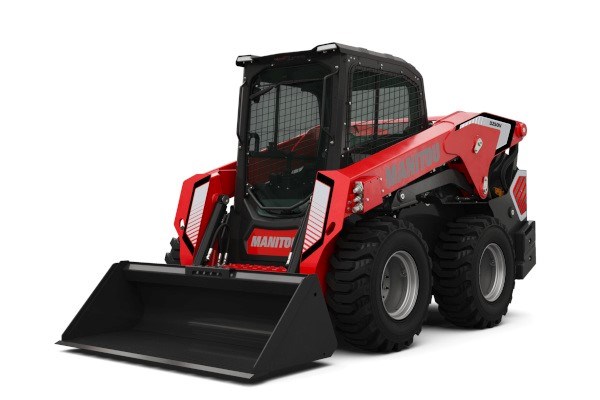

Manitou 3250V

Double tap to zoom

Skid Steer Loaders

3250V

Overview:

Overall Operating Height - Fully Raised: 173 in
Dump reach - Full height: 33 in
Overall length with bucket: 154 in
Overall width less bucket: 73 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

New from Manitou a robust range of vertical lift loaders to perform in the most demanding conditions. The vertical lift arms allow you to dump material further into large trucks,Increased fuel capacity and fast travel speeds provide agility and endurance to increase productivity.

The large cabin design, featuring several Manitou exclusive benefits, offers more comfort and ergonomics. Enhanced visibility provides the operator the ability for more precision in maneuvering tight areas. The flip-up cooler and cab also reduce customer TCO and offer top-of class service access making maintenance work easier than ever.

The 3250V skid loader is designed and tested for performance to deliver productivity. With 3,250 lbs (1474 kg) of operating capacity, 69.3 horsepower and up to 10,7 mph (17.3 km/h) the 3250V is perfect for construction and agriculture applications.

Specifications

Capacities
Operating Capacity At 50% Tipping Load	3250 lb
Rated Operating Capacity with Optional Counterweight	3450 lb
Operating Weight	9101 lb
Tipping capacity	6499 lb
Weight and dimensions
Wheelbase	52 in
Overall Operating Height - Fully Raised	173 in
Height to Hinge Pin - Fully Raised	134 in
Overall Height to top of ROPS	82 in
Dump angle at full height	41 °
Dump height	104 in
Overall length with bucket	154 in
Dump reach - Full height	33 in
Rollback at ground	29 °
Rollback Angle at Full Height	94 °
Seat to ground height	41 in
Overall width less bucket	73 in
Bucket Width	74 in
Ground clearance	8 in
Overall length - Less Bucket	123 in
Clearance Radius - Front with Bucket	91 in
Performances
Travel speed (unladen)	7 mph
Travel Speed with Two-Speed Option - Maximum	11 mph
Wheels
Standard tires	12 x 16.5
Engine
Engine brand	Yanmar
Engine model	4TNV98CT-9NGL
Max. torque / Engine rotation	217 ft/lbs / 1625 rpm
Power source	Battery
Engine power (Hp / kW)	69.30 Hp / 51 kW
Starter	3 kW
Hydraulics
Standard flow - Auxiliary hydraulics	25 US gpm
Auxiliary Hydraulic Pressure	3450 PSI
High-Flow Auxiliary Hydraulics - Option	34 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option	3325 PSI
Tank capacities
Fuel tank	28 US gal
Hydraulic tank capacity	8 US gal
