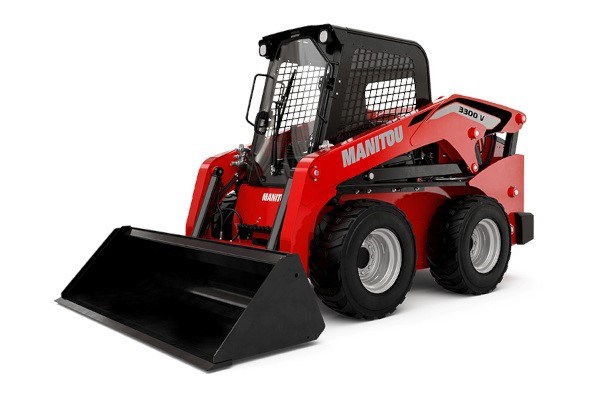

Manitou 3300V NXT2

Double tap to zoom

Skid Steer Loaders

3300V NXT2

Overview:

Rated Operating Capacity: 3300 lb
Overall Operating Height - Fully Raised: 172 in
Dump reach - Full height: 32 in
Overall length with bucket: 153 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Discover the unprecedented performance of the vertical-lift 3300 V NXT: 2 skid loader. Equipped with a Yanmar engine, this latest generation skid loader helps you perform all your loading, grading and excavation under the ground level. Compact, rugged, and made for all-terrain, this unit is the ideal solution for working in hard to reach areas on uneven surfaces. Change attachments within minutes and get a solution for every project! The vertical-lift 3300 V NXT:2 skid loader facilitates your various daily loading operations and delivers excellent operator visibility from the cab.

Specifications

Capacities
Rated Operating Capacity	3300 lb
Unladen weight	9010 lb
Weight and dimensions
Wheelbase	49 in
Overall Operating Height - Fully Raised	172 in
Height to Hinge Pin - Fully Raised	131 in
Overall Height to top of ROPS	82 in
Dump angle at full height	42 °
Dump height	99 in
Overall length with bucket	153 in
Dump reach - Full height	32 in
Rollback at ground	29 °
Seat to ground height	41 in
Overall width less bucket	72 in
Bucket Width	74 in
Ground clearance	9 in
Overall length - Less Bucket	119 in
Departure angle	25 °
Clearance Radius - Front with Bucket	94 in
Performances
Travel speed (unladen)	8 mph
Travel Speed with Two-Speed Option - Maximum	12 mph
Wheels
Standard tires	14.00 x 17.5 HD
Engine
Engine brand	Yanmar
Engine model	4TNV98CT-NMS
Engine norm	Tier 4
Max. torque / Engine rotation	217 ft/lbs / 2500 rpm
Power source	Diesel
Engine power (Hp / kW)	72 Hp / 52.70 kW
Battery voltage	12 V
Alternator	95 kW
Starter	3 kW
Hydraulics
Standard flow - Auxiliary hydraulics	24 US gpm
Auxiliary Hydraulic Pressure	3450 PSI
High-Flow Auxiliary Hydraulics - Option	35 US gpm
High-Flow Auxiliary Hydraulics Pressure - Option	3200 PSI
Tank capacities
Fuel tank	24 US gal
Hydraulic tank capacity	11 US gal
Displacement	0.87 US gal
Noise and vibration
Noise to environment (LwA)	101 dB
Noise at driving position (LpA)	85 dB
Whole-Body Vibration (ISO 2631-1)	3 ft/s²
Vibration on hands/arms	< 4 ft/s²
