Manitou MHT 10200 ST5

Double tap to zoom

MHT Series

MHT 10200 ST5

Overview:

Max. capacity: 44090 lb Max. lifting height: 31 ft 10 in Max. outreach: 17 ft 9 in I.C. Engine power rating: 211 Hp

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

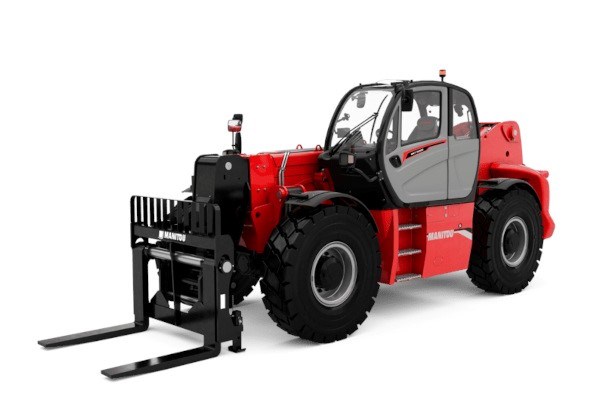

The MHT 101200 model is a telescopic handler with a capacity of 20 tonnes and a maximum lifting height of 10 metres. Equipped with a 211 hp engine and hydrostatic transmission, the MHT 10200 telescopic handler is used to handle heavy and bulky loads in complete safety and on any type of terrain thanks to its 4 driving and steering wheels. It can be fitted with a wide range of attachments: forks, positioner, hook and winch, shovel, man basket and tyre grippers, cylinders and tubes. For maximum comfort, this machine is equipped with a panoramic, ergonomic cab, Easy Step access, JSM joystick and colour touch-screen display.

Specifications

Capacities
Max. capacity	44090 lb
Load center of gravity	24 in
Max. lifting height	31 ft 10 in
Max. outreach	17 ft 9 in
Weight and dimensions
Overall length	25 ft 11 in
Unladen weight (with forks)	59194 lb
Ground clearance	1 ft 4 in
Wheelbase	12 ft 4 in
Length to face of forks	22 ft
Overall width	8 ft 6 in
Overall height	9 ft 9 in
Overall cab width	3 ft 1 in
Tilt-up angle	14 °
Tilt-down angle	103 °
External turning radius (over tyres)	18 ft 4 in
Forks length / width / section	47 in x 8 in / 3 in
Frame leveling corrector	10 °
Wheels
Standard tires	16.00 R25
Number of front wheels / rear wheels	2 / 2
Drive wheels (front / rear)	2 / 2
Steering mode	2 wheel steer, 4 wheel steer, Crab mode
Engine
Engine brand	Yanmar
Engine norm	Stage V / Tier 4
Engine model	4TN107FTT-6SMU2
Number of cylinders / Capacity of cylinders	4 - 279 in³
I.C. Engine power rating / Power	211 Hp / 155 kW
Max. torque / Engine rotation	594 ft/lbs@1500 rpm
Engine cooling system	Water
Number of batteries	2
Battery voltage	12 V
Drawbar pull	18140 daN
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed	16 mph
Parking brake	Automatic negative parking brake
Service brake	Oil-immersed multi-discs braking on front & rear axles
Gradeability (laden / unladen)	30.50 % / 58.90 %
Hydraulics
Hydraulic pump type	Variable displacement pump
Hydraulic flow - Pressure	73 US gpm - 5076 PSI
Tank capacities
Engine oil	3 US gal
Hydraulic oil	77 US gal
Fuel tank	83 US gal
Diesel Exhaust fluid (AdBlueÂ® type)	6 US gal
Noise and vibration
Noise at driving position (LpA)	75 dB
Noise to environment (LwA)	109 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Safety cab homologation	Cabin ROPS - FOPS level 2
Controls	JSM
Attachment recognition system (E-Reco)	Standard
