Manitou MHT 11250 ST5

Double tap to zoom

MHT Series

MHT 11250 ST5

Overview:

Max. capacity: 55113 lb Max. lifting height: 34 ft 9 in Max. outreach: 19 ft 8 in I.C. Engine power rating: 211 Hp

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

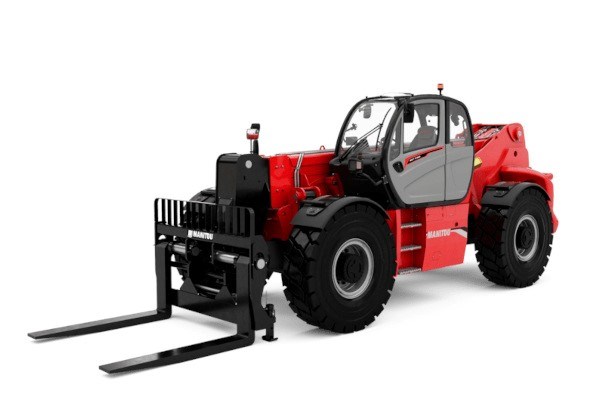

The MHT 11250 is a telescopic handler with a capacity of 25 tonnes and a maximum lifting height of 11 metres. Equipped with a 211 hp engine and hydrostatic transmission, the MHT 11250 telescopic handler can handle heavy and bulky loads in complete safety and on any type of terrain thanks to its 4-wheel drive and steering. A wide range of attachments can be installed: forks, positioner, hook and winch, bucket, basket and tyre clamps, cylinder clamps and pipes clamps. For maximum comfort, this machine is equipped with an ergonomic panoramic cab, Easy Step access, JSM joystick and colour touch screen.

Specifications

Capacities
Max. capacity	55113 lb
Load center of gravity	35 in
Max. lifting height	34 ft 9 in
Max. outreach	19 ft 8 in
Weight and dimensions
Overall length	29 ft 3 in
Unladen weight (with forks)	69688 lb
Ground clearance	1 ft 7 in
Wheelbase	13 ft 5 in
Length to face of forks	23 ft 4 in
Overall width	9 ft 2 in
Overall height	10 ft 1 in
Overall cab width	3 ft 1 in
Tilt-up angle	10 °
Tilt-down angle	106 °
External turning radius (over tyres)	18 ft 1 in
Forks length / width / section	71 in x 9 in / 4 in
Frame leveling corrector	10 °
Wheels
Standard tires	18.00 R25
Number of front wheels / rear wheels	2 / 2
Drive wheels (front / rear)	2 / 2
Steering mode	2 wheel steer, 4 wheel steer, Crab mode
Engine
Engine brand	Yanmar
Engine norm	Stage V / Tier 4
Engine model	4TN107FTT-6SMU2
Number of cylinders / Capacity of cylinders	4 - 279 in³
I.C. Engine power rating / Power	211 Hp / 155 kW
Max. torque / Engine rotation	594 ft/lbs@1500 rpm
Engine cooling system	Water
Number of batteries	2
Battery voltage	12 V
Drawbar pull	20400 daN
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed	16 mph
Parking brake	Automatic negative parking brake
Service brake	Oil-immersed multi-discs braking on front & rear axles
Gradeability (laden / unladen)	31.50 % / 57.70 %
Hydraulics
Hydraulic pump type	Variable displacement pump
Hydraulic flow - Pressure	73 US gpm - 5076 PSI
Tank capacities
Engine oil	3 US gal
Hydraulic oil	77 US gal
Fuel tank	83 US gal
Diesel Exhaust fluid (AdBlueÂ® type)	6 US gal
Noise and vibration
Noise at driving position (LpA)	75 dB
Noise to environment (LwA)	109 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Safety cab homologation	Cabin ROPS - FOPS level 2
Controls	JSM
Attachment recognition system (E-Reco)	Standard
