Manitou MHT 12330

Double tap to zoom

MHT Series

MHT 12330

Overview:

Max. capacity: 72753 lb Max. lifting height: 39 ft 1 in Max. outreach: 21 ft 8 in I.C. Engine power rating: 245 Hp

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

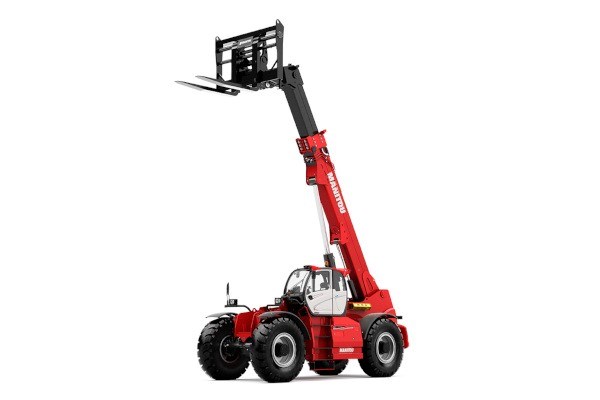

The MHT 12330 high capacity telehandler is capable of flexibly and transporting heavy, larger loads with complete precision. The large number of compatible attachments available truly transform the MHT 12330 into a versatile multi-tool carrier. The ergonomic driver's cab features intuitive controls which can be grasped immediately by the operator. The comfort and the panoramic view provide optimum working conditions and help contribute to safety during delicate handling operations. You could, for example, transport large pieces of rock or marble at a quarry or handle long components such as steel bars, rails or metallic structures. It's also useful when maintaining mining equipment, changing wheels, replacing cylinders or shifting conveyors.

Specifications

Capacities
Max. capacity	72753 lb
Load center of gravity	47 in
Max. lifting height	39 ft 1 in
Max. outreach	21 ft 8 in
Weight and dimensions
Overall length	35 ft 4 in
Unladen weight (with forks)	108027 lb
Ground clearance	1 ft 11 in
Wheelbase	16 ft 1 in
Length to face of forks	27 ft 6 in
Overall width	9 ft 9 in
Overall height	11 ft 10 in
Overall cab width	3 ft 2 in
Tilt-up angle	10 °
Tilt-down angle	100 °
External turning radius (over tyres)	24 ft 4 in
Outer turning radius (with forks)	30 ft 7 in
Forks length / width / section	94 in x 4 in / 10 in
Frame leveling corrector	6 °
Wheels
Standard tires	21.00 R35
Number of front wheels / rear wheels	2 / 2
Steering wheels (front / rear)	4 / 4
Drive wheels (front / rear)	2 / 2
Steering mode	2 wheel steer, 4 wheel steer, Crab mode
Engine
Engine brand	Deutz
Engine norm	Stage V / Tier 4 final
Engine model	TCD 6.1 L6
Number of cylinders / Capacity of cylinders	6 - 372 in³
I.C. Engine power rating / Power	245 Hp / 180 kW
Max. torque / Engine rotation	738 ft/lbs@1450 rpm
Engine cooling system	Water
Number of batteries	2
Battery voltage	12 V
Drawbar pull	28400 daN
Transmission
Transmission type	Hydrostatic with Powershift
Number of gears (forward / reverse)	3 / 3
Max. travel speed	16 mph
Parking brake	Automatic negative parking brake
Service brake	Oil-immersed multi-discs braking on front & rear axles
Gradeability (laden)	36 %
Hydraulics
Hydraulic pump type	Variable displacement pump
Hydraulic flow - Pressure	82 US gpm - 5076 PSI
Tank capacities
Engine oil	6 US gal
Hydraulic oil	151 US gal
Fuel tank	159 US gal
Diesel Exhaust fluid (AdBlueÂ® type)	8 US gal
Noise and vibration
Noise at driving position (LpA)	80 dB
Noise to environment (LwA)	107 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Safety cab homologation	Cabin ROPS - FOPS level 2
Controls	JSM
Attachment recognition system (E-Reco)	Standard
