Manitou MHT 790 ST5

Double tap to zoom

MHT Series

MHT 790 ST5

Overview:

Max. capacity: 19842 lb Max. lifting height: 22 ft 4 in Max. outreach: 12 ft 2 in I.C. Engine power rating: 143 Hp

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

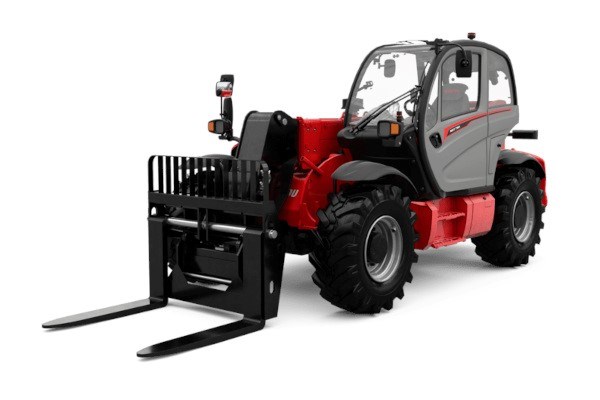

The MHT 790 is a telescopic handler with a capacity of 9 tonnes and a maximum lifting height of 7 metres. It is equipped with a 145 hp engine and a hydrostatic transmission that makes the movements extremely precise. Thanks to the 4 driving and steering wheels, it is easy to manoeuvre on all types of terrain in complete safety. The MHT 790 telescopic handler is used in construction, quarries and industry. It can be equipped with a wide range of attachments: forks, positioner, hook and winch, shovel, man basket and tyre grippers, cylinders and tubes. For maximum comfort, this machine is equipped with a panoramic, ergonomic cab, Easy Step access, JSM joystick and colour touch-screen display.

Specifications

Capacities
Max. capacity	19842 lb
Load center of gravity	24 in
Max. lifting height	22 ft 4 in
Max. outreach	12 ft 2 in
Weight and dimensions
Overall length	21 ft
Unladen weight (with forks)	29013 lb
Ground clearance	1 ft 5 in
Wheelbase	9 ft 5 in
Length to face of forks	17 ft 1 in
Overall width	8 ft 1 in
Overall height	8 ft 4 in
Overall cab width	3 ft 1 in
Tilt-up angle	15 °
Tilt-down angle	109 °
External turning radius (over tyres)	15 ft 6 in
Forks length / width / section	47 in x 8 in / 2 in
Wheels
Standard tires	445/65 R22,5
Number of front wheels / rear wheels	2 / 2
Drive wheels (front / rear)	2 / 2
Steering mode	2 wheel steer, 4 wheel steer, Crab mode
Engine
Engine brand	Yanmar
Engine norm	Stage V / Tier 4
Engine model	4TN107FHT-5SMUF
Number of cylinders / Capacity of cylinders	4 - 279 in³
I.C. Engine power rating / Power	143 Hp / 105 kW
Max. torque / Engine rotation	444 ft/lbs@1500 rpm
Engine cooling system	Water cooled
Number of batteries	1
Battery voltage / capacity	12 V / 1200 Ah
Drawbar pull	10050 daN
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed	22 mph
Parking brake	Automatic negative parking brake
Service brake	Oil-immersed multi-discs braking on front & rear axles
Gradeability (laden / unladen)	48.10 % / 37.40 %
Hydraulics
Hydraulic pump type	Variable displacement pump
Hydraulic flow - Pressure	49 US gpm - 3916 PSI
Tank capacities
Engine oil	3 US gal
Hydraulic oil	40 US gal
Fuel tank	44 US gal
Diesel Exhaust fluid (AdBlueÂ® type)	5 US gal
Noise and vibration
Noise at driving position (LpA)	75
dBNoise to environment (LwA)	107 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Safety cab homologation	Cabin ROPS - FOPS level 2
Controls	JSM
