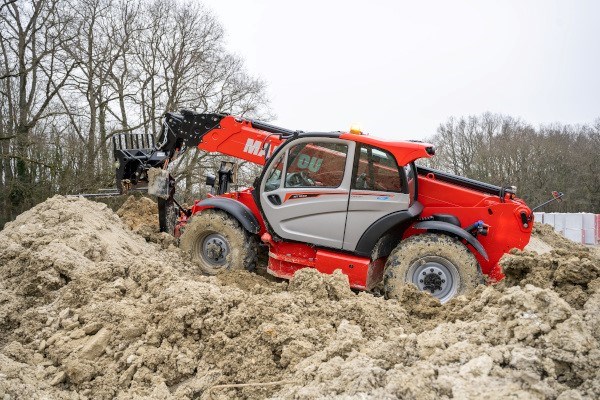

Manitou MT 1840 A 100D ST5 S1

Double tap to zoom

MT Series

MT 1840 A 100D ST5 S1

Overview:

Max. capacity: 8818 lb Max. lifting height: 57 ft 7 in Max. outreach: 42 ft 11 in I.C. Engine power rating: 100 Hp

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Sorry, currently there are no features but check back with us later.

Specifications

Capacities
Max. capacity	8818 lb
Max. lifting height	57 ft 7 in
Max. outreach	42 ft 11 in
Breakout force with bucket	8391 daN
Weight and dimensions
Overall length to carriage	20 ft 2 in
Length to face of forks	20 ft 7 in
Overall width	7 ft 9 in
Overall height	8 ft
Wheelbase	10 ft 1 in
Ground clearance	1 ft 3 in
Overall cab width	2 ft 11 in
Tilt-up angle	12 °
Tilt-down angle	114 °
External turning radius (over tyres)	12 ft 11 in
Unladen weight (with forks)	27888 lb
Overall weight	27337 lb
Tires type	Pneumatic
Standard tires	Alliance 400/80 - 24 - 162A8
Forks length / width / section	47 in x 5 in x 2 in
Performances
Lifting	14 s
Lowering	14 s
Extension	19 s
Retraction	15 s
Scoop	5 s
Dump	5 s
Engine
Engine brand	Deutz
Engine norm	Stage V
Engine model	TCD 3.6
Number of cylinders / Capacity of cylinders	4 - 221 in³
I.C. Engine power rating - Power	100 Hp / 75 kW
Max. torque / Engine rotation	302 ft/lbs @ 1600 rpm
Drawbar pull (Laden)	8391 daN
Transmission
Transmission type	Torque converter
Number of gears (forward / reverse)	4 / 4
Travel speed (laden)	16 mph
Max. travel speed	15 mph
Parking brake	Automatic negative parking brake
Service brake	Oil-immersed multi-discs on front & rear axles
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow / Pressure	44 US gpm-3916 PSI
Tank capacities
Engine oil	3 US gal
Hydraulic oil	36 US gal
Fuel tank	37 US gal
DEF tank capacity	6 US gal
Noise and vibration
Noise at driving position (LpA)	79 dB
Noise to environment (LwA)	106 dB
Vibration on hands/arms	<2.50 m/s²
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Safety cab homologation	Cabin ROPS - FOPS level 2
Controls	JSM
