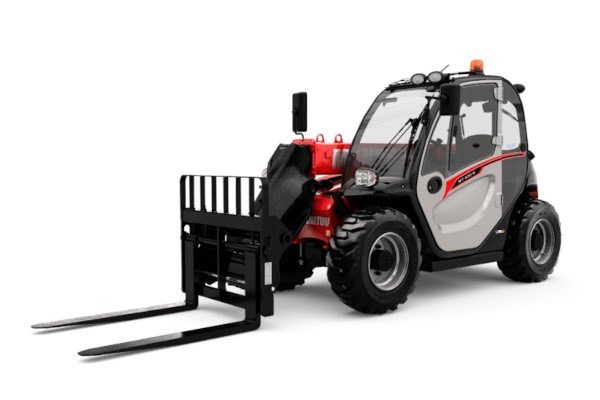

Manitou MT 420 H

Double tap to zoom

MT Series

MT 420 H

Overview:

Max. capacity: 4409 lb Max. lifting height: 14 ft 3 in Max. outreach: 8 ft 8 in I.C. Engine power rating: 57 Hp

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MT 420 H super-compact telehandler is the smallest in the MT range. Ideal for construction and renovation, its exceptional compactness allows access through narrow entrances as well as confined spaces. Its turning radius and 3 steering modes (4WS/2WS/Crab) provide excellent maneuverability. The MT 420 H has a capacity of 4,400 lbs (2,000 kg) at 14 ft. 3 in. (4.3) m, giving it a high performance load chart. The 56 hp (42 kW) engine and 2-speed hydrostatic transmission has the power to reach 15.5 mph (25 km/h). Another advantage is the simultaneous movements of the lift and extend functions that further increase productivity.

Specifications

Capacities
Max. capacity	4409 lb
Max. lifting height	14 ft 3 in
Max. outreach	8 ft 8 in
Breakout force with bucket	1886 daN
Weight and dimensions
Overall length to carriage	11 ft 11 in
Length to face of forks	11 ft 9 in
Overall width	4 ft 11 in
Overall height	6 ft 6 in
Wheelbase	7 ft
Ground clearance	9 in
Overall cab width	2 ft 7 in
Tilt-up angle	12 °
Tilt-down angle	116 °
External turning radius (over tyres)	9 ft 9 in
Unladen weight (with forks)	9237 lb
Overall weight	9392 lb
Tires type	Pneumatic
Forks length / width / section	47 in x 5 in x 2 in
Performances
Lifting	5 s
Lowering	3.50 s
Extension	4.80 s
Retraction	3 s
Crowd	3.30 s
Dump	2.70 s
Engine
Engine brand	Kubota
Engine norm	Stage V
Engine model	2607-CR-E5
Number of cylinders / Capacity of cylinders	4 - 160 in³
I.C. Engine power rating - Power	57 Hp / 42 kW
Max. torque / Engine rotation	128 ft/lbs @ 1600 rpm
Drawbar pull (Laden)	2850 daN
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed	15 mph
Parking brake	Automatic Negative Hand-brake
Service brake	Disk brake on the cadran shaft
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow / Pressure	20 US gpm-3408 PSI
Tank capacities
Engine oil	3 US gal
Hydraulic oil	18 US gal
Fuel tank	16 US gal
Noise and vibration
Noise at driving position (LpA)	76 dB
Noise to environment (LwA)	104 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Safety / Safety cab homologation	Standard EN 15000 / ROPS - FOPS cab (level 1)
Controls	JSM
