Manitou MT 625 H Comfort

Double tap to zoom

MT Series

MT 625 H Comfort

Overview:

Max. capacity: 5512 lb Max. lifting height: 19 ft 2 in Max. outreach: 11 ft 2 in I.C. Engine power rating: 75 Hp

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

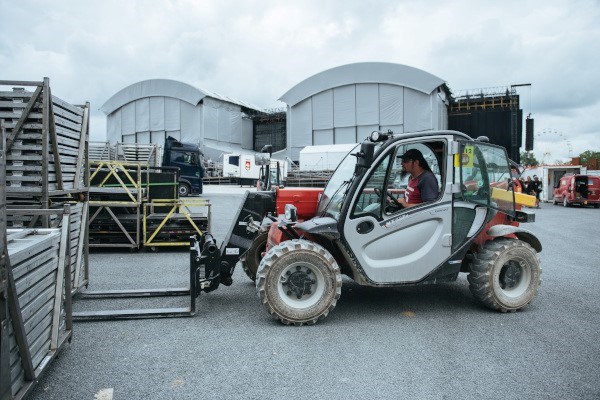

The MT 625 H telehandler is specially designed for building sites and renovation projects involving lower heights. Its compact dimensions - with a width of 1.8 m and under 2 m in height - mean you can easily pass under thresholds and navigate congested areas. Its 3.3 m turning radius and 3 steering modes available provide you with excellent maneuverability. Easy to use, this handler features an ergonomic instrument panel and JSM-equipped joystick to easily execute all machine funtions in one control. The MT 625 H has a lift capacity of 2.5 t, with a maximum lift height of 5.85 m. Its 75 hp engine reaches speeds of up to 25 km/h. Maintenance is made easy with the wide opening angle of the engine hood. The 90 l gear pump allows for simultaneous movement of the boom and telescope for increased productivity.

Specifications

Capacities
Max. capacity	5512 lb
Max. lifting height	19 ft 2 in
Max. outreach	11 ft 2 in
Breakout force with bucket	3427 daN
Weight and dimensions
Overall length to carriage	12 ft 7 in
Length to face of forks	12 ft 10 in
Overall width	5 ft 11 in
Overall height	6 ft 4 in
Wheelbase	7 ft 7 in
Ground clearance	1 ft 1 in
Overall cab width	2 ft 7 in
Tilt-up angle	12 °
Tilt-down angle	117 °
External turning radius (over tyres)	10 ft 10 in
Overall weight	10582 lb
Tires type	Pneumatic
Standard tires	CAMSO SKS532 12-16.5
Forks length / width / section	47 in x 5 in x 2 in
Performances
Lifting	8 s
Lowering	5.40 s
Extension	5.60 s
Retraction	4.30 s
Crowd	3.50 s
Dump	3.60 s
Engine
Engine brand	Kubota
Engine norm	Stage V / Tier 4 final
Engine model	V3307-CR-TE5B
Number of cylinders / Capacity of cylinders	4 - 203 in³
I.C. Engine power rating - Power	75 Hp / 55.40 kW
Max. torque / Engine rotation	195 ft/lbs @ 1400 rpm
Drawbar pull (Laden)	3550 daN
Electric circuit
Battery voltage	12 V
12V Battery capacity	110 Ah
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed	15 mph
Parking brake	Automatic negative parking brake
Service brake	Oil-Immersed multi-discs braking on front axles
Axle Manufacturer	Dana
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow / Pressure	24 US gpm-3408 PSI
Tank capacities
Engine oil	3 US gal
Hydraulic oil	30 US gal
Fuel tank	17 US gal
Noise and vibration
Noise at driving position (LpA)	76 dB
Noise to environment (LwA)	104 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Safety / Safety cab homologation	Standard EN 15000 / ROPS - FOPS cab (level 1)
Controls	JSM
