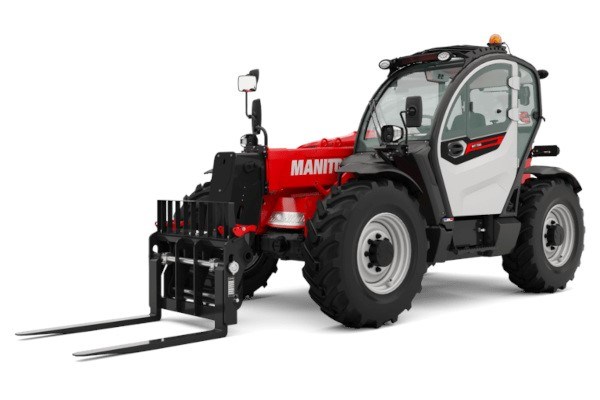

Manitou MT 735 75D ST5

Double tap to zoom

MT Series

MT 735 75D ST5

Overview:

Max. capacity: 7716 lb Max. lifting height: 22 ft 8 in Max. outreach: 13 ft 1 in I.C. Engine power rating: 75 Hp

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Sorry, currently there are no features but check back with us later.

Specifications

Capacity
Max. capacity	7716 lb
Max. lifting height 22 ft 8 in
Max. outreach	13 ft 1 in
Breakout force with bucket	6850 daN
Weight and dimensions
Overall length to carriage	15 ft 5 in
Length to face of forks	15 ft 8 in
Overall length (with forks)	19 ft 8 in
Overall width	7 ft 6 in
Overall height	8 ft 2 in
Wheelbase	9 ft 2 in
Ground clearance	1 ft 5 in
Overall cab width	3 ft 1 in
Tilt-up angle	13 °
Tilt-down angle	114 °
External turning radius	12 ft 5 in
External turning radius (over tyres)	12 ft 5 in
Unladen weight (with forks)	15278 lb
Unladen weight	14573 lb
Overall weight	15278 lb
Tires type	Pneumatic
Standard tires	Alliance 400/80 - 24 -162A8
Forks length / width / section	47 in x 4 in x 2 in
Performance
Lifting	5.90 s
Lowering	4.20 s
Extension	12.30 s
Retraction	4.70 s
Crowd	3.50 s
Dump	3.60 s
Engine
Engine brand	Deutz
Engine norm	Stage V / Tier 4 Final
Engine model	TCD 3.6 L
Number of cylinders / Capacity of cylinders	4 - 178 in³
I.C. Engine power rating - Power	75 Hp / 55.40 kW
Max. torque / Engine rotation	277 ft/lbs @ 1400 rpm
Drawbar pull (Laden)	7220 daN
HVO validated (according to EN 15940 standard)	Yes
Electric circuit
12V Battery capacity	110 Ah
Transmission
Transmission type	Torque converter
Number of gears (forward / reverse)	4 / 4
Max. travel speed	15 mph
Parking brake	Automatic parking brake
Service brake	Hydraulic servo brake
Hydraulics
Hydraulic pump type	Axial piston
Hydraulic flow / Pressure	29 US gpm-3771 PSI
Tank capacities
Engine oil	2 US gal
Hydraulic oil	34 US gal
Fuel tank	27 US gal
Noise and vibration
Noise at driving position (LpA)	77 dB
Noise to environment (LwA)	104 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Safety / Safety cab homologation	Standard EN 15000 / Cabin ROPS - FOPS level 2
Controls	JSM
