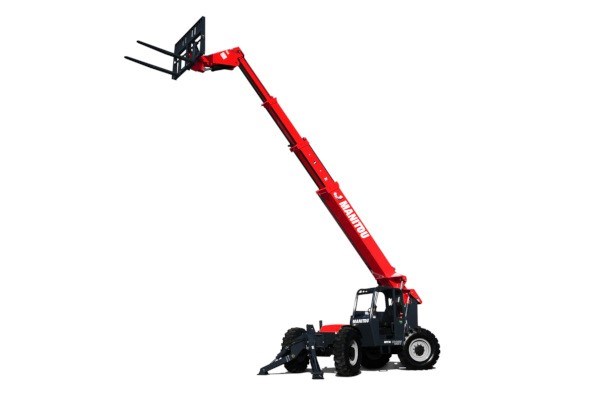

Manitou MTA 10055 Series IV

Double tap to zoom

MTA Series

MTA 10055 Series IV

Overview:

Max. capacity: 10000 lb
Max. lifting height: 55 ft
Max. outreach: 41 ft 2 in I.C.
Engine power rating: 89 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MTA 10055 construction telehandler is capable of placing various loads (pallets, bulks, big bags, etc.) up to 16.8 m in height. Its 4.5 t maximum lift capacity is particularly well received by professionals in the construction sector. Its spacious, open driver's cab, 115 hp John Deere engine and the proven robustness of the rest of its components make it one of the most durable and cost effective machines around. Controls are easy to grasp, so your operators can quickly pick it up and get on with the task at hand, and it's easy to maintain, with key parts being easily accessible. The MTA 10055 is versatile enough to handle any type of work site, put it to the test.

Specifications

Capacities
Max. capacity	10000 lb
Max. lifting height	55 ft
Max. outreach	41 ft 2 in
Weight and dimensions
Overall length to carriage	21 ft
Overall width	8 ft 4 in
Overall height	8 ft 6 in
Wheelbase	10 ft 4 in
Ground clearance	18 in
Overall cab width	33 in
Tilt-up angle	12 °
Tilt-down angle	112 °
External turning radius	13 ft 11 in
Unladen weight (with forks)	27800 lb
Standard tires	14 x 24
Frame leveling longitudinal +/-	10 °
Frame leveling corrector	10 °
Performances
Lifting	15 s
Lowering	10 s
Extension	15 s
Retraction	12 s
Crowd	10 s
Dump	5 s
Engine
Engine brand	Deutz
Engine norm	Tier 4 final
Engine model	TCD 3.6 L4
Number of cylinders / Capacity of cylinders	4 - 0.23 in³
I.C. Engine power rating - Power	119.35 Hp / 89 kW
Max. torque / Engine rotation	354 ft/lbs @ 1600 rpm
Transmission
Transmission type	Torque converter with powershift gearbox
Number of gears (forward / reverse)	4 / 3
Travel speed (laden)	20 mph
Max. travel speed	20 mph
Parking brake	Hydraulic spring release SAHR
Service brake	Wet disc brakes
Axle Manufacturer	Dana
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow / Pressure	41 US gpm-3002 PSI
Tank capacities
Engine oil	4 US gal
Hydraulic oil	45 US gal
Fuel tank	47 US gal
DEF tank capacity	5 US gal
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Safety cab homologation	ROPS/FOPS
Controls	Single Joystick FNR
