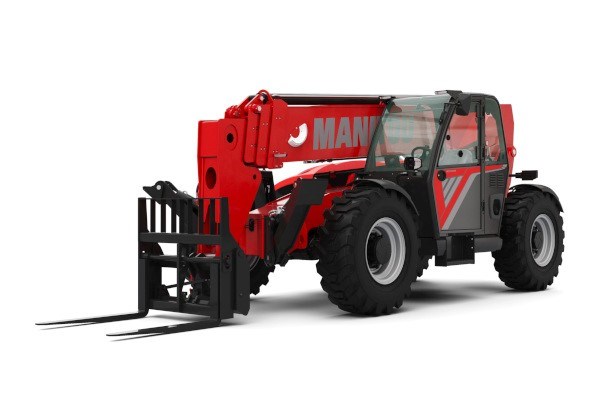

Manitou MTA 1055

Double tap to zoom

MTA Series

MTA 1055

Overview:

Max. capacity: 10000 lb
Max. lifting height: 55 ft 7 in
Maximum outreach: 42 ft 3 in
Engine power (kW): 95 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The new MTA Serie is designed to meet the needs of North American construction markets and rental sectors.

The MTA 1055: high lift with full power performance. MTA 1055 has 10,000 lbs. (4,536 kg) capacity with max lift to 55' 7" (16.9 m) and reach to 42' 3" (12.9 m). Deutz 127 HP and 5 speed power shift trasmission.

The new design also offers better visibility, comfort, performance, and a reduced total cost of ownership.

New cabin design for more comfort and visibility
Enhanced performance from combined hydraulic movements
Better TCO with robust, high quality components

Specifications

Capacities	Imperial
Max. capacity	10000 lb
Max. lifting height	55 ft 7 in
Maximum outreach	42 ft 3 in
Weight and dimensions
Length to face of forks	21 ft
Overall length (with forks)	25 ft
Overall width	8 ft 4 in
Overall height	8 ft 6 in
Wheelbase	11 ft 6 in
Ground clearance	1 ft 7 in
Overall cab width	3 ft 1 in
Tilt-up angle	34 °
Tilt-down angle	96 °
External turning radius	12 ft 10 in
Overall weight	30300 lb
Tires type	Pneumatic
Forks length / width / section	48 in x 5 in x 2 in
Frame leveling corrector	10 °
Performances
Lifting	16 s
Lowering	11 s
Extension	18 s
Retraction	16 s
Crowd	4 s
Dump	6 s
Engine
Engine brand	Deutz
Engine norm	Tier 4 fi nal
Engine model	TCD 3.6 L4
Number of cylinders / Capacity of cylinders	4 - 220 in³
Engine power (Hp/kW)	127 Hp / 95 kW
Max. torque / Engine rotation	369 ft/lbs @ 2300 rpm
Drawbar pull	12519 daN
Transmission
Transmission type	Powershift
Number of gears (forward / reverse)	5 / 3
Max. travel speed	20 mph
Parking brake	Hydraulic spring release SAHR
Service brake	Wet disc brakes
Hydraulics
Hydraulic pump type	Axial piston
Hydraulic fl ow / Pressure	40 US gpm-4000 PSI
Tank capacities
Engine oil	2 US gal
Hydraulic oil	42 US gal
Diesel Exhaust fl uid (AdBlue® type)	4 US gal
Fuel tank	38 US gal
Noise and vibration
Noise at driving position (LpA)	80 dB
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Controls	Joystick
