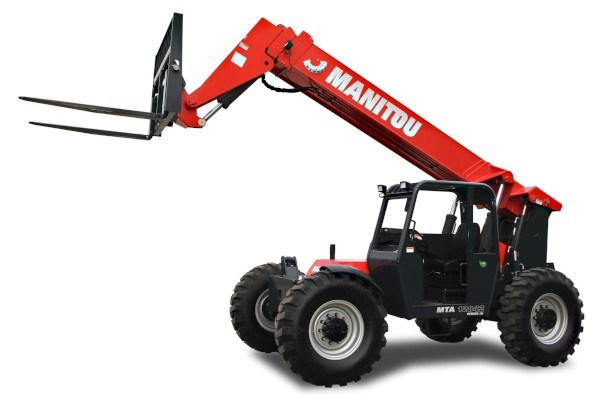

Manitou MTA 12042 Series IV

Double tap to zoom

MTA Series

MTA 12042 Series IV

Overview:

Max. capacity: 12000 lb
Max. lifting height: 42 ft
Maximum outreach: 27 ft 11 in
Engine power (kW): 89 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MTA 12042 construction telehandler is ideal for industrial sites requiring a lift height of up to 12.8 m and heavy-capacity handling up to 5.5 t. The tight turning radius of the MTA 12042 combined with its intuitive controls provide you with incredible maneuverability, even in confined spaces. This all-terrain construction telehandler is extremely stable, even when the boom is deployed, thanks to outriggers and the rear axle locking system. You can use this machine to transport all manner of loads--engaging a variety of attachments on the boom--to the various levels of your construction site: winches, buckets, jibs, forks, tire handlers, skips, etc.

Specifications

Capacities
Max. capacity	12000 lb
Max. lifting height	42 ft
Maximum outreach	27 ft 11 in
Weight and dimensions
Overall length to carriage	19 ft 4 in
Overall width	8 ft 4 in
Overall height	7 ft 11 in
Wheelbase	10 ft 4 in
Ground clearance	18 in
Overall cab width	33 in
Tilt-up angle	12 °
Tilt-down angle	112 °
External turning radius	13 ft 11 in
Unladen weight (with forks)	25201 lb
Overall weight	25201 lb
Standard tires	14 x 24
Frame leveling longitudinal +/-	10 °
Frame leveling corrector	10 °
Performances
Lifting	15 s
Lowering	10 s
Extension	14 s
Retraction	10 s
Crowd	6 s
Dump	3 s
Engine
Engine brand	Deutz
Engine norm	Tier 4 final
Engine model	TCD 3.6 L4
Number of cylinders / Capacity of cylinders	4 - 0.23 in³
Engine power (Hp/kW)	119.35 Hp / 89 kW
Max. torque / Engine rotation	354 ft/lbs @ 1600 rpm
Transmission
Transmission type	Torque converter with powershift gearbox
Number of gears (forward / reverse)	4 / 3
Max. travel speed	20 mph
Parking brake	Hydraulic spring release SAHR
Service brake	Wet disc brakes
Axle Manufacturer	Dana
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow / Pressure	41 US gpm-3002 PSI
Tank capacities
Engine oil	4 US gal
Hydraulic oil	45 US gal
Diesel Exhaust fluid (AdBlue® type)	5 US gal
Fuel tank	47 US gal
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Cab certification	ROPS/FOPS
Controls	Single Joystick FNR
