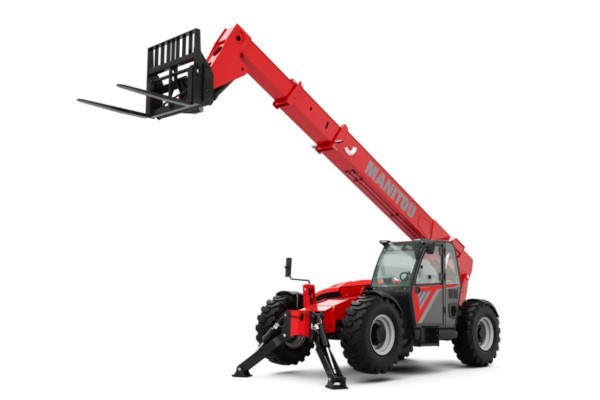

Manitou MTA 1242 MAX

Double tap to zoom

MTA Series

MTA 1242 MAX

Overview:

Max. capacity: 12000 lb
Max. lifting height: 42 ft 6 in
Maximum outreach: 28 ft 6 in
Engine power (kW): 95 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Manitou is also introducing the all-new MTA 1242 MAX and MTA 1242 MAX E74 models. These machines are based on the design of the MTA 1242, but feature the addition of front outriggers for enhanced stability and lifting power.

The "MAX" designation makes it easy to distinguish these upgraded models from the standard versions, ensuring customers can quickly identify the right machine for their jobsite needs. While the rated capacity on tires remains the same, deploying the front outriggers increases lift capacity from 2,500 lbs. to 4,000 lbs., depending on forward reach. This expanded capability provides contractors with more versatility when handling materials at extended heights or distances.

Specifications

Capacities
Max. capacity	12000 lb
Max. lifting height	42 ft 6 in
Maximum outreach	28 ft 6 in
Weight and dimensions
Overall length to carriage	20 ft 8 in
Overall length (with forks)	24 ft 8 in
Overall width	8 ft 4 in
Overall height	8 ft 1 in
Wheelbase	11 ft 6 in
Ground clearance	1 ft 7 in
Overall cab width	3 ft 1 in
Tilt-up angle	34 °
Tilt-down angle	96 °
External turning radius	12 ft 9 in
Overall weight	28300 lb
Tires type	Pneumatic
Forks length / width / section	48 in x 6 in x 2 in
Frame leveling corrector	10 °
Performances
Lifting	16 s
Lowering	11 s
Extension	17 s
Retraction	12 s
Crowd	4 s
Dump	6 s
Engine
Engine brand	Deutz
Engine norm	Tier 4 final
Engine model	TCD 3.6 L4
Number of cylinders / Capacity of cylinders	4 - 220 in³
Engine power (Hp/kW)	127 Hp / 95 kW
Max. torque / Engine rotation	369 ft/lbs @ 2300 rpm
Transmission
Transmission type	Powershift
Number of gears (forward / reverse)	5 / 3
Max. travel speed	22 mph
Parking brake	Hydraulic spring release SAHR
Service brake	Wet disc brakes
Hydraulics
Hydraulic pump type	Axial piston
Hydraulic flow / Pressure	40 US gpm-4000 PSI
Tank capacities
Engine oil	2 US gal
Hydraulic oil	38 US gal
Diesel Exhaust fluid (AdBlue® type)	4 US gal
Fuel tank	38 US gal
Noise and vibration
Noise at driving position (LpA)	80 dB
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
