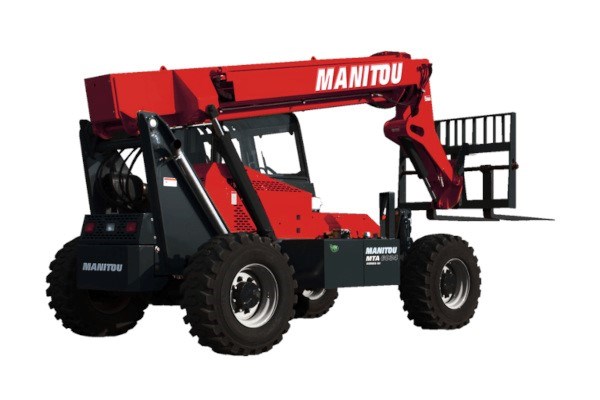

Manitou MTA 6034 S3

Double tap to zoom

MTA Series

MTA 6034 S3

Overview:

Max. capacity: 5999 lb
Max. lifting height: 34 ft 3 in
Max. outreach: 23 ft 3 in
Engine power (kW): 55.40 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MTA 6034 construction telehandler is reliable and robust, equipped with a welded box-section boom. This machine is capable of transporting, lifting, placing and removing loads up to 10.4 m in height. And with a maximum load capacity of 2.7 t, this telehandler gives you a quick and excellent return on your investment. Clear up sites more easily and more safely with the MTA 6034 thanks to its Deutz TD 3.6 Tier IV engine and Powershift gearbox. Load and unload lorries, place and remove loads at greater heights, use the various attachments available to handle structures, concrete, materials... there's nothing this telehandler can't do.

Specifications

Capacities
Max. capacity	5999 lb
Max. lifting height	34 ft 3 in
Max. outreach	23 ft 3 in
Weight and dimensions
Overall length to carriage	16 ft
Overall width	7 ft 10 in
Overall height	7 ft 9 in
Wheelbase	9 ft 2 in
Ground clearance	14 in
Overall cab width	30 in
Tilt-up angle	12 °
Tilt-down angle	106 °
External turning radius	12 ft 6 in
Unladen weight (with forks)	15113 lb
Standard tires	15 x 19.5
Frame leveling longitudinal +/-	10 °
Frame leveling corrector	10 °
Performances
Lifting	11 s
Lowering	8 s
Extension	10 s
Retraction	11 s
Crowd	4 s
Dump	3 s
Engine
Engine brand	Deutz
Engine norm	Stage IV / Tier 4 Final
Engine model	TD3.6 L4
Number of cylinders / Capacity of cylinders	4 - 0.22 in³
I.C. Engine power rating - Power	74.29 Hp / 55.40 kW
Max. torque / Engine rotation	243 ft/lbs @ 330 rpm
Transmission
Transmission type	Torque converter with powershift gearbox
Number of gears (forward / reverse)	3 / 3
Travel speed (laden)	18 mph
Parking brake	Hydraulic spring release SAHR
Service brake	Wet disc brakes
Axle Manufacturer	Dana
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow / Pressure	29 US gpm-3002 PSI
Tank capacities
Engine oil	2 US gal
Hydraulic oil	35 US gal
Fuel tank	29 US gal
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Safety cab homologation	ROPS/FOPS
Controls	Single Joystick FNR
