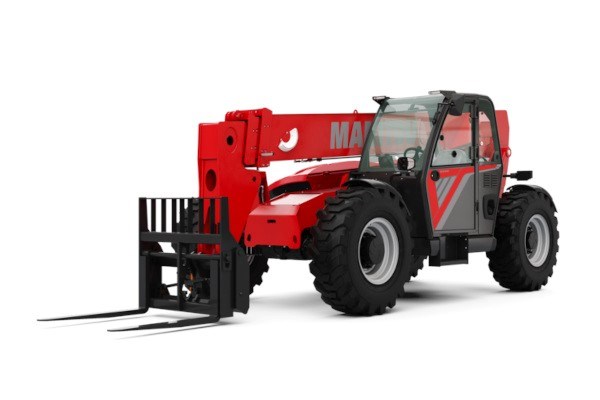

Manitou MTA 642

Double tap to zoom

MTA Series

MTA 642

Overview:

Max. capacity: 6000 lb
Max. lifting height: 42 ft 6 in
Max. outreach: 28 ft 6 in
Engine power (kW): 55 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The new MTA Serie is designed to meet the needs of North American construction markets and rental sectors.

The MTA 642 offering a maximum lift 42' 6" (12.96 m) and reach 28' 6" (8.68 m) for a 6,000 lbs. (2,722 kg) telescopic handler. Features no DEF or DPF systems with a 74 HP Deutz engine.

The new design also offers better visibility, comfort, performance, and a reduced total cost of ownership.

New cabin design for more comfort and visibility
Enhanced performance from combined hydraulic movements
Better TCO with robust, high quality components

Specifications

Capacities
Max. capacity	6000 lb
Max. lifting height	42 ft 6 in
Max. outreach	28 ft 6 in
Weight and dimensions
Length to face of forks	20 ft 8 in
Overall length (with forks)	24 ft 8 in
Overall width	8 ft 2 in
Overall height	8 ft
Wheelbase	11 ft 6 in
Ground clearance	1 ft 6 in
Overall cab width	3 ft 1 in
Tilt-up angle	34 °
Tilt-down angle	96 °
External turning radius	13 ft 1 in
Unladen weight (with forks)	22851 lb
Overall weight	22851 lb
Tires type	Pneumatic
Forks length / width / section	48 in x 4 in x 2 in
Frame leveling corrector	10 °
Performances
Lifting	11 s
Lowering	6 s
Extension	17 s
Retraction	11 s
Crowd	4 s
Dump	6 s
Engine
Engine brand	Deutz
Engine norm	Tier 4 final
Engine model	TCD 3.6 L4
Number of cylinders / Capacity of cylinders	4 - 220 in³
I.C. Engine power rating - Power	74 Hp / 55 kW
Max. torque / Engine rotation	288 ft/lbs @ 2300 rpm
Drawbar pull	10433 kgF
Transmission
Transmission type	Powershift
Number of gears (forward / reverse)	5 / 3
Max. travel speed	20 mph
Parking brake	Hydraulic spring release SAHR
Service brake	Wet disc brakes
Hydraulics
Hydraulic pump type	Axial piston
Hydraulic flow / Pressure	40 US gpm-4000 PSI
Tank capacities
Engine oil	2 US gal
Hydraulic oil	36 US gal
Fuel tank	38 US gal
Noise and vibration
Noise at driving position (LpA)	80 dB
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
