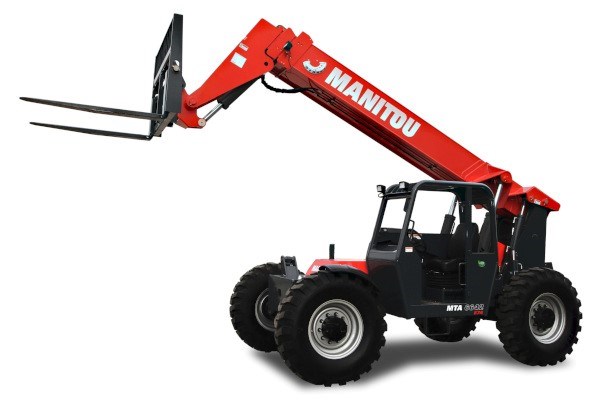

Manitou MTA 6642 E74

Double tap to zoom

MTA Series

MTA 6642 E74

Overview:

Max. capacity: 6601 lb
Max. lifting height: 42 ft
Maximum outreach: 28 ft 3 in
Engine power (kW): 55 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MTA 6642 E74 telescopic handler responds specifically to the requirements of the construction, energy or civil engineering markets. With a maximum load capacity of 2994 kg and a significant lift height (12.8 m), this high-performance model allows you to handle your materials in ideal conditions. Work with comfort and safety thanks to 360 degree visibility offered by the ergonomic cab, off-road design and many of the telescopic protection systems. To meet all your needs, the MTA 6642 E74 is compatible with many attachments.

Specifications

Capacities
Max. capacity	6601 lb
Max. lifting height	42 ft
Maximum outreach	28 ft 3 in
Weight and dimensions
Overall length to carriage	19 ft 1 in
Overall width	8 ft 2 in
Overall height	7 ft 8 in
Wheelbase	9 ft 11 in
Ground clearance	16 in
Overall cab width	33 in
Tilt-up angle	32 °
Tilt-down angle	112 °
External turning radius	13 ft 9 in
Overall weight	22002 lb
Tires type	Inflatable
Stadard tires	13 x 24
Forks length / width / section	47 in x 5 in x 2 in
Performances
Lifting	11 s
Lowering	8 s
Extension	14 s
Retraction	12 s
Crowd	7 s
Dump	4 s
Engine
Engine brand	Deutz
Engine norm	Stage IV, Tier 4 final
Engine model	TCD 3.6 L4
Number of cylinders / Capacity of cylinders	4 - 0.23 in³
Engine power (Hp/kW)	74 Hp / 55 kW
Max. torque / Engine rotation	288 ft/lbs @ 1300 rpm
Transmission
Transmission type	Torque converter with powershift gearbox
Number of gears (forward / reverse)	4 / 3
Max. travel speed	15 mph
Parking brake	Hydraulic spring release SAHR
Service brake	Wet disc brakes
Axle Manufacturer	Dana
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow / Pressure	41 US gpm-3002 PSI
Tank capacities
Engine oil	4 US gal
Hydraulic oil	45 US gal
Fuel tank	47 US gal
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Cab certification	ROPS/FOPS
Controls	Joystick
