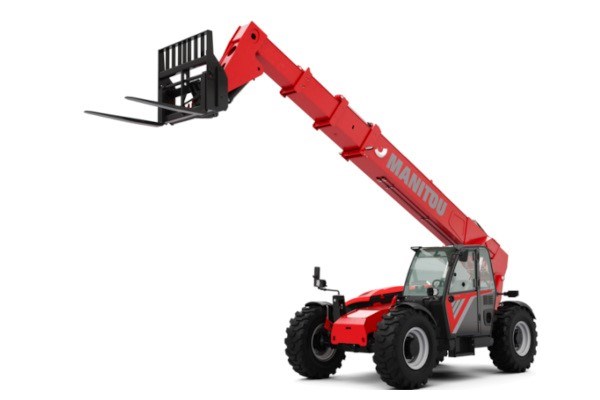

Manitou MTA 950

Double tap to zoom

MTA Series

MTA 950

Overview:

Max. capacity: 9000 lb
Max. lifting height: 50 ft 2 in
Maximum outreach: 36 ft 7 in
Engine power (kW): 95 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

With a maximum lift capacity of 9,000 lbs. and a maximum lift height of 50 feet, the MTA 950 delivers the reach and strength required for high-demand masonry and material-handling tasks. The machine is capable of landing 5,000 lbs. of material at 47 feet without front stabilizers, a significant advantage that streamlines workflow and eliminates extra setup time.

Specifications

Capacities
Max. capacity	9000 lb
Max. lifting height	50 ft 2 in
Maximum outreach	36 ft 7 in
Weight and dimensions
Overall length to carriage	21 ft
Overall length (with forks)	25 ft
Overall width	8 ft 4 in
Overall height	8 ft 6 in
Wheelbase	11 ft 6 in
Ground clearance	1 ft 7 in
Overall cab width	3 ft 1 in
Tilt-up angle	34 °
Tilt-down angle	96 °
External turning radius	12 ft 9 in
Overall weight	28650 lb
Tires type	Pneumatic
Forks length / width / section	48 in x 5 in x 2 in
Frame leveling longitudinal +/-	10 °
Performances
Lifting	16 s
Lowering	11 s
Extension	18 s
Retraction	16 s
Crowd	4 s
Dump	6 s
Engine
Engine brand	Deutz
Engine norm	Tier 4 final
Engine model	TCD 3.6 L4
Number of cylinders / Capacity of cylinders	4 - 220 in³
Engine power (Hp/kW)	127 Hp / 95 kW
Max. torque / Engine rotation	369 ft/lbs @ 2300 rpm
Transmission
Transmission type	Powershift
Number of gears (forward / reverse)	5 / 3
Max. travel speed	20 mph
Parking brake	Hydraulic spring release SAHR
Service brake	Wet disc brakes
Hydraulics
Hydraulic pump type	Axial piston
Hydraulic flow / Pressure	40 US gpm-4000 PSI
Tank capacities
Engine oil	2 US gal
Hydraulic oil	42 US gal
Diesel Exhaust fluid (AdBlue® type)	4 US gal
Fuel tank	38 US gal
Noise and vibration
Noise at driving position (LpA)	80 dB
Miscellaneous
Steering wheels (front / rear)	2 / 2
Drive wheels (front / rear)	2 / 2
Controls	Joystick
