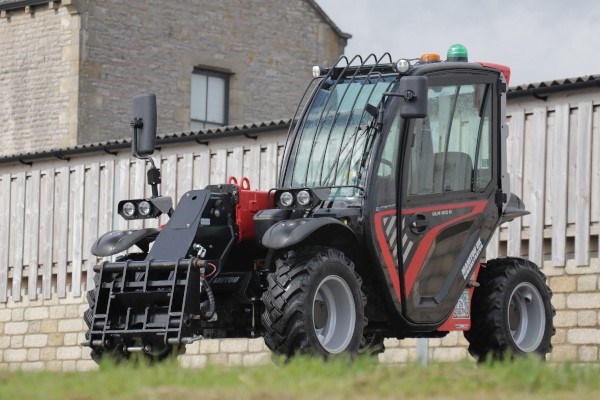

Manitou ULM 412 H

Double tap to zoom

ULM Series

ULM 412 H

Overview:

Max. capacity: 2756 lb
Max. lifting height: 14 ft 1 in
Maximum outreach: 8 ft 7 in
Engine power (kW): 26.20 kW

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The ULM telehandler is designed to help you save time and money. It is adapted to many types industries: landscaping companies, riding schools, building companies... Thanks to its 1250kg or 1500kg capacity (2 models are available), the ULM can easily place pallets of blocks or bricks, straw or hay bales... Its ultra compact dimensions and rough terrain abilities make this machine particularly adapted to work in tight spaces on all types of grounds. Due to its lightweight, the ULM can also easily be transported on a small trailer. If you need to fully adapt your machine to your environment, numerous options are available: the auto reversing fan, the air prefilter, a full range of tires..

Specifications

Capacities
Max. capacity	2756 lb
Max. lifting height	14 ft 1 in
Max. outreach	8 ft 7 in
Reach at max. height	3 ft 3 in
Breakout force with bucket	1880 daN
Weight and dimensions
Shipping mass (min. / max.)	5622 lb / 6063 lb
Ground clearance	11 in
Wheelbase	7 ft
Overall length to carriage (with hitch)	11 ft 5 in
Overall length to carriage (without hitch)	11 ft 5 in
Front overhang	2 ft 6 in
Overall width	4 ft 11 in
Overall cab width	2 ft 2 in
Overall height	6 ft 4 in
Tilt-down angle	116 °
Tilt-up angle	23 °
External turning radius (over tyres)	8 ft 7 in
Standard tires	CAMSO - MPT 552 - 10.0/75-15.3 124A8
Performances
Lifting	8.80 s
Lowering	7 s
Extension	6.40 s
Retraction	4.30 s
Crowd	3.40 s
Dump	2.60 s
Engine
Engine brand	Yanmar
Engine norm	Stage V / Tier 4 final
Engine model	3TNV88C-DMU
Number of cylinders - Capacity of cylinders	3 - 100 in³
I.C. Engine power rating / Power	35.10 Hp / 26.20 kW
Max. torque / Engine rotation	77 ft/lbs @1950 rpm
Drawbar pull (Laden)	2000 daN
Reversible fan	Option
Engine cooling system	3 radiators (water + hydraulic oil + fuel)
HVO validated (according to EN 15940 standard)	Yes
Transmission
Transmission type	Hydrostatic
Number of gears (forward / reverse)	2 / 2
Max. travel speed (may vary according to applicable regulations)	16 mph
Differential lock	Limited slip differential on front and rear axles
Parking brake	Automatic negative parking brake
Service brake	Hydraulic servo brake
Hydraulics
Hydraulic pump type	Gear pump
Hydraulic flow - Pressure	13 US gpm - 3408 PSI
Flow sharing distributor	Standard
Tank capacities
Fuel tank	9 US gal
Noise and vibration
Noise at driving position (LpA) tested following NF EN 12053 norm	76 dB
Noise to environment (LwA)	104 dB
Vibration on hands/arms	< 2.50 m/s²
Miscellaneous
Safety cab homologation	ROPS - FOPS cab (level 1)
Controls	JSM
