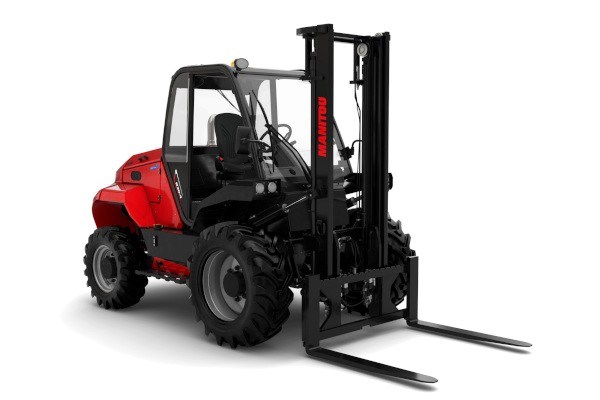

Manitou M 30-4 D ST5

Double tap to zoom

M Forklift Trucks

M 30-4 D ST5

Overview:

Max. lifting height: 276 in
Max. capacity: 6614 lb
Turning radius: 159 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The M 30-4 is the ideal truck for extreme handling conditions. Quarries, mining operations, construction sites, wood industry are all activities for which this truck is extremely efficient. The Manitou masts offer excellent robustness on rough-terrain conditions, they lift up to 6.5 m. For a better performance, a wide choice of tires is available on this truck, you can adapt to all situations.

Specifications

Technical characteristics
Manufacturer	MANITOU
Model Name	M 30-4 D ST5
Power source	Diesel
Operator type	Seated
Max. capacity	6614 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	29 in
Wheelbase	79 in
Weight
Service weight	13151 lb
Weight on front axle (laden) / rear axle (laden)	16513 lb / 3252 lb
Weight on front axle (Unladen) / rear axle (Unladen)	4751 lb / 8400 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	405/70-20 149B 1323
Dimensions of rear wheels	10,5-18 12PR 1317
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	4
Front wheel gauge	60 in
Rear wheel gauge	64 in
Dimensions
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version)	97 in / 97 in
Seat height/stand height	56 in
Overall length	185 in
Length to face of forks	138 in
Overall width	76 in
Forks section x width x length	2 in x 5 in / 47 in
Fork carriage ISO 2328 (class/form) A/B	3A
Fork carriage width	58 in
Ground clearance below mast	16 in
Ground clearance at centre of wheelbase	16 in
Aisle width for 1000 x 1200 pallet widthways	243 in
Aisle width for 800 x 1200 pallet lengthways	243 in
Turning radius	159 in
Performances
Travel speed (laden / unladen)	6 mph / 14 mph
Lifting speed (laden / unladen)	2 ft/s / 2 ft/s
Lowering speed (laden / unladen)	1 ft/s / 1 ft/s
Drawbar pull (Laden / Unladen)	6290 daN / 4250 daN
Service brake	Hydraulic
Engine
I.C. Engine power rating	55 kW
Engine brand / model / norm	Deutz / TCD 2,9 / Stage V
Rated speed	2300 rpm
Number of cylinders / Capacity of cylinders	4 - 178 in³
Miscellaneous
Working hydraulic pressure for attachments	2683 PSI
Oil flow rate for attachments	26 US gpm
Sound level at the driver's ear according to DIN 12 053	78 dB
