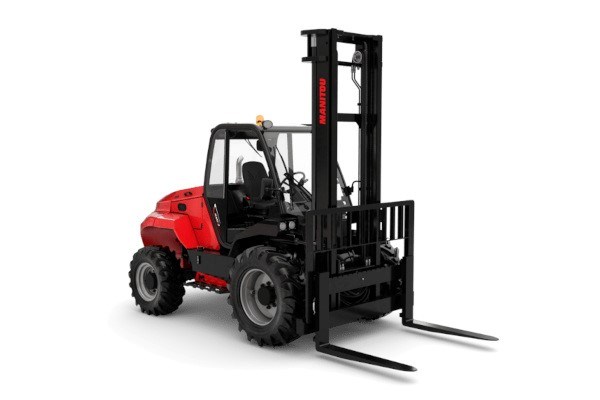

Manitou M 50-2 D ST5

Double tap to zoom

M Forklift Trucks

M 50-2 D ST5

Overview:

Max. lifting height: 236 in
Max. capacity: 11023 lb
Turning radius: 136 in
Load center of gravity: 24 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The M 50-2 forklift truck is designed to operate on complicated floors. With its simple and robust design, it is at ease on all types of ground thanks to its ground clearance of 38 cm. The choice of tires and the 74 hp engine give it power and adaptability in all situations. For easy maintenance, the throttle-opening hood gives access to all the essential components of the machine. Accessible from both sides, the cab offers a spacious driving position and ergonomic controls for a quick grip. With the rounded rear counterweight and 360° panoramic cab you gain visibility and safety.

Specifications

Technical characteristics
Manufacturer	MANITOU
Model Name	M 50-2 D ST5
Power source	Diesel
Operator type	Seated
Max. capacity	11023 lb
Load center of gravity	24 in
Load distance, centre of drive axle to fork	30 in
Wheelbase	81 in
Weight
Service weight	18243 lb
Weight on front axle (laden) / rear axle (laden)	25607 lb / 3660 lb
Weight on front axle (Unladen) / rear axle (Unladen)	7242 lb / 11001 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	18-19,5 18PR A224
Dimensions of rear wheels	10R17,5 G291 GY
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	2
Front wheel gauge	63 in
Rear wheel gauge	65 in
Dimensions
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version)	96 in / 96 in
Seat height/stand height	55 in
Overall length	195 in
Length to face of forks	148 in
Overall width	81 in
Forks section x width x length	2 in x 6 in / 47 in
Fork carriage ISO 2328 (class/form) A/B	4A
Fork carriage width	66 in
Ground clearance below mast	10 in
Ground clearance at centre of wheelbase	15 in
Aisle width for 1000 x 1200 pallet widthways	222 in
Aisle width for 800 x 1200 pallet lengthways	222 in
Turning radius	136 in
Performances
Travel speed (laden / unladen)	14 mph / 14 mph
Lifting speed (laden / unladen)	1 ft/s / 1 ft/s
Lowering speed (laden / unladen)	2 ft/s / 1 ft/s
Drawbar pull (Laden)	6900 daN
Gradeability (laden)	51 %
Service brake	Hydraulic
Engine
I.C. Engine power rating	55 kW
Engine brand / model / norm	Deutz / TCD 2,9 / Stage V
Rated speed	2300 rpm
Number of cylinders / Capacity of cylinders	4 - 178 in³
Miscellaneous
Working hydraulic pressure for attachments	3336 PSI
Oil flow rate for attachments	26 US gpm
Sound level at the driver's ear according to DIN 12 053	78 dB
