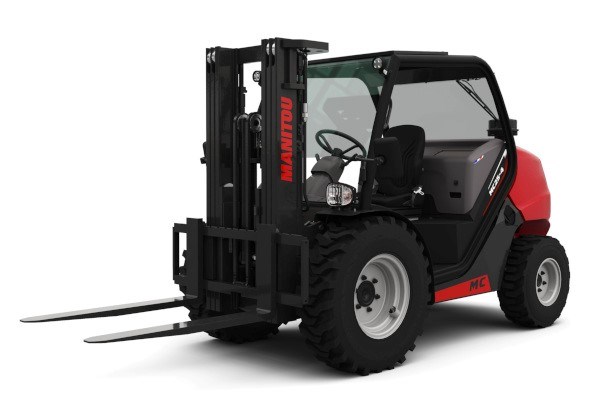

Manitou MC 25-4 ST5

Double tap to zoom

MC Forklift Trucks

MC 25-4 ST5

Overview:

Max. lifting height: 217 in
Max. capacity: 5512 lb
Turning radius: 134 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Discover the performance of the MC 25-4 Manitou, the world's best-selling compact all-terrain forklift. Offering an excellent crossing capacity, this particularly compact model is the machine you need to handle heavy loads (up to 2500 kg), even in the most confined areas of your operation or construction site. Its buggy version and its free lift triplex mast allow an overall height of less than 2m to work in basements and containers. The MC trucks designed by Manitou have a large ground clearance, an oscillating rear axle and a mast directly attached to the chassis. Optimize your transport and loading operations whatever your environment!

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	MC 25-4 ST5
Power source	Diesel
Operator type	Seated
Max. capacity	5512 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	24 in
Wheelbase	75 in
Weight
Standard mast reference of the machine	FVD 33
Service weight	9458 lb
Weight on front axle (laden) / rear axle (laden)	13162 lb / 1808 lb
Weight on front axle (Unladen) / rear axle (Unladen)	3924 lb / 5534 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	12,5/80-18/12 SL R4
Dimensions of rear wheels	27x10-12 SKS
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	4
Front wheel gauge	46 in
Rear wheel gauge	46 in
Dimensions
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version)	85 in / 78 in
Seat height/stand height	43 in
Overall length	165 in
Length to face of forks	120 in
Overall width	57 in
Forks section x width x length	2 in x 4 in / 47 in
Fork carriage ISO 2328 (class/form) A/B	2A
Fork carriage width	50 in
Ground clearance below mast	12 in
Ground clearance at centre of wheelbase	12 in
Turning radius	11171 ft 3 in
Performances
Travel speed (laden / unladen)	7 mph / 15 mph
Lifting speed (laden / unladen)	2 ft/s / 2 ft/s
Lowering speed (laden / unladen)	2 ft/s / 0.98 ft/s
Drawbar pull (Laden)	3100 daN
Gradeability (laden)	51 %
Service brake	Hydraulic brakes by loss of pressure
Engine
I.C. Engine power rating	37 kW
Engine brand / model / norm	Kubota / D1803 CRT E5B / Stage V
Rated speed	2700 rpm
Number of cylinders / Capacity of cylinders	3 - 111 in³
Miscellaneous
Type of drive control	Electronic
Working hydraulic pressure for attachments	2901 PSI
Oil flow rate for attachments	11 US gpm
