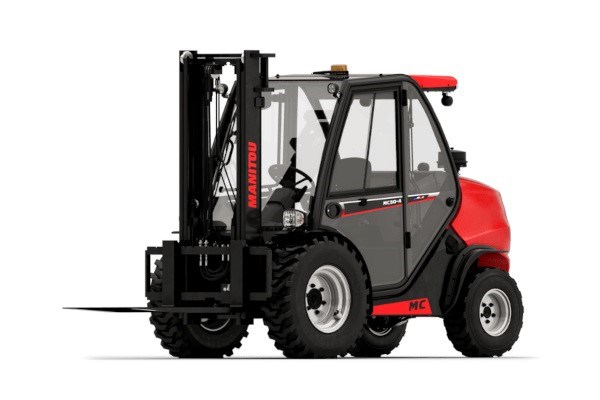

Manitou MC 30-4 ST5

Double tap to zoom

MC Forklift Trucks

MC 30-4 ST5

Overview:

Max. lifting height: 217 in
Max. capacity: 6614 lb
Turning radius: 135 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

The MC 30-4 forklift truck offers exceptional crossing capabilities. Powerful, compact, maneuverable and all-terrain, it goes where other machines don't go. Take advantage of its performance to handle your loads with ease whatever the terrain conditions (rough, uneven, muddy and slope-crossing surfaces). The MC 30-4 truck adapts to all your applications thanks to its great versatility. Optimize your operations and work in complete safety with the Manitou MC 30-4 rough-terrain forklift truck!

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	MC 30-4 ST5
Power source	Diesel
Operator type	Seated
Max. capacity	6614 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	25 in
Wheelbase	75 in
Weight
Standard mast reference of the machine	FVD 33
Service weight	9789 lb
Weight on front axle (laden) / rear axle (laden)	14661 lb / 1742 lb
Wheels
Tires type	Pneumatic
Dimensions of front wheels	12,5/80-18/12 SL R4
Dimensions of rear wheels	27x10-12 SKS
Number of front wheels / rear wheels	2 / 2
Number of drive wheels	4
Front wheel gauge	46 in
Rear wheel gauge	46 in
Dimensions
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version)	85 in / 78 in
Seat height/stand height	43 in
Overall length	167 in
Length to face of forks	121 in
Overall width	57 in
Forks section x width x length	2 in x 4 in / 47 in
Fork carriage ISO 2328 (class/form) A/B	3A
Ground clearance below mast	12 in
Ground clearance at centre of wheelbase	12 in
Aisle width for 1000 x 1200 pallet widthways	215 in
Turning radius	135 in
Performances
Travel speed (laden / unladen)	7 mph / 15 mph
Lifting speed (laden / unladen)	2 ft/s / 2 ft/s
Lowering speed (laden / unladen)	2 ft/s / 0.98 ft/s
Drawbar pull (Laden)	3100 daN
Gradeability (laden)	46 %
Service brake	Hydraulic brakes by loss of pressure
Engine
I.C. Engine power rating	37 kW
Engine brand / model / norm	Kubota / D1803 CRT E5B / Stage V
Rated speed	2700 rpm
Number of cylinders / Capacity of cylinders	3 - 111 in³
Miscellaneous
Type of drive control	Electronic
Oil flow rate for attachments	11 US gpm
Sound level at the driver's ear according to DIN 12 053	79 dB
