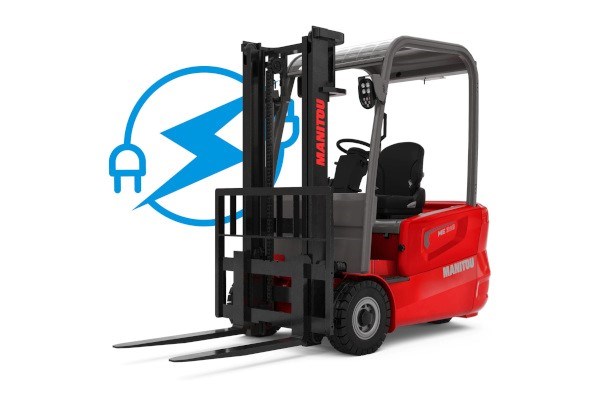

Manitou ME 316 US

Double tap to zoom

ME Forklift Trucks

ME 316 US

Overview:

Max. lifting height: 256 in
Max. capacity: 3527 lb
Turning radius: 61 in
Load center of gravity: 20 in

Get a Quote

Send to a Friend

Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features

Discover the performance of the ME 316 forklift truck. Electric, this machine allows you to carry out all your handling operations. Truck loading / unloading, storage, feeding of production lines, warehousing ... Facilitate the transport of your goods and materials! The ME 316 can lift loads up to 1600 kg. Take advantage of its great versatility in daily use, its compact design and its optimal residual capacities at high heights!

Specifications

Technical characteristics
Manufacturer	Manitou
Model Name	ME 316 US
Power source	Electrical
Operator type	Seated
Max. capacity	3527 lb
Load center of gravity	20 in
Load distance, centre of drive axle to fork	14 in
Wheelbase	53 in
Weight
Service weight	6878 lb
Weight on front axle (laden) / rear axle (laden)	9039 lb / 1367 lb
Weight on front axle (Unladen) / rear axle (Unladen)	3175 lb / 3704 lb
Wheels
Tires type	Solid tires
Dimensions of front wheels	18x7-8
Dimensions of rear wheels	15x4,5-8
Number of front wheels / rear wheels	2 / 1
Number of drive wheels	2
Front wheel gauge	36 in
Rear wheel gauge	7 in
Dimensions
Height of overhead guard (cabin)	80 in
Seat height/stand height	39 in
Height of towing bar (coupling height)	20 in
Overall length	117 in
Length to face of forks	75 in
Overall width	43 in
Forks section / width / length	1 in x 4 in x 42 in
Fork carriage ISO 2328 (class/form) A/B	2A
Fork carriage width	39 in
Ground clearance below mast	4 in
Ground clearance at centre of wheelbase	4 in
Aisle Width for pallets 1000 x 1200 crossways	127 in
Aisle width for 800 x 1200 pallet lengthways	132 in
Turning radius	61 in
Performances
Travel speed (laden / unladen)	10 mph-11 mph
Lifting speed (laden / unladen)	1 ft/s-2 ft/s
Lowering speed (laden / unladen)	2 ft/s-1 ft/s
Drawbar pull (Laden / Unladen)	750 daN / 772 daN
Gradeability (laden / unladen)	16 % / 18 %
Service brake	Oil bath
Engine
Number of drive motor / Drive motor rating S2 60 min	2 / 4.50 kW
Lift motor rating at S3 15%	8.60 kW
Battery according to DIN 43531/35/36 A, B, C	DIN43531 A
Battery voltage / capacity	48 V / 575 Ah
Energy consumption according to VDI cycle (kW/h)	4.30 kWh
Miscellaneous
Type of drive control	Electronic
Working hydraulic pressure for attachments	2611 PSI
Oil flow rate for attachments	9 US gpm
Measured/guaranteed mean noise level at the ear of the operator	< 70 dB
Sound level at the driver's ear according to DIN 12 053	70 dB
