ME Forklift Trucks

ME 320 US

PRINT

Overview:

Max. lifting height:  256 in
Max. capacity:  4409 lb
Turning radius:  65 in
Load center of gravity:  20 in

Get a Quote
Send to a Friend
Payment Calculator

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

Amount Financed ($)
Interest Rate (%)
Loan Term in Months
Monthly Payment Calculated
Yearly Payment Calculated

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. This information is provided for illustrative purposes only and does not constitute an application.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:


Features

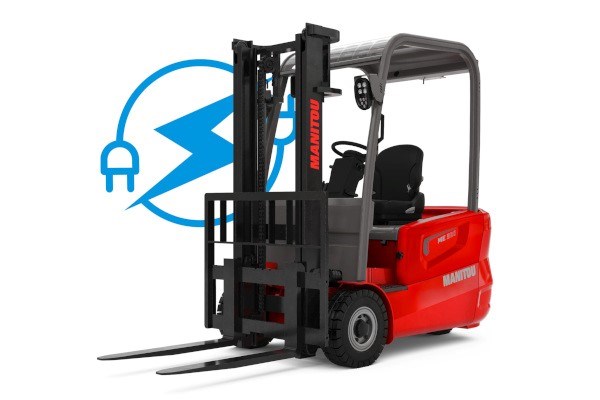

The ME 320 forklift truck was designed to transport loads weighing up to 2000 kg. Electric, easy to handle, it helps you on a daily basis in all your handling operations: truck loading/unloading, storage, production line feeding, logistics application... Take advantage of its robustness and performance to work in optimal safety conditions. The ME 320 also offers an excellent level of comfort in the cab. Get a complete solution, adapted to each business problem!

Specifications

Technical characteristics
ManufacturerManitou
Model NameME 320 US
Power sourceElectrical
Operator typeSeated
Max. capacity4409 lb
Load center of gravity20 in
Load distance, centre of drive axle to fork14 in
Wheelbase58 in
Weight
Service weight7650 lb
Weight on front axle (laden) / rear axle (laden)10472 lb / 1587 lb
Weight on front axle (Unladen) / rear axle (Unladen)3373 lb / 4277 lb
Wheels
Tires typeSolid tires
Dimensions of front wheels200/50-10
Dimensions of rear wheels15x4,5-8
Number of front wheels / rear wheels2 / 1
Number of drive wheels2
Front wheel gauge36 in
Rear wheel gauge7 in
Dimensions
Height of overhead guard (cabin)80 in
Seat height/stand height39 in
Height of towing bar (coupling height)20 in
Overall length121 in
Length to face of forks79 in
Overall width44 in
Forks section / width / length2 in x 5 in x 42 in
Fork carriage ISO 2328 (class/form) A/B2A
Fork carriage width39 in
Ground clearance below mast4 in
Ground clearance at centre of wheelbase4 in
Aisle Width for pallets 1000 x 1200 crossways132 in
Aisle width for 800 x 1200 pallet lengthways137 in
Turning radius65 in
Performances
Travel speed (laden / unladen)9 mph-9 mph
Lifting speed (laden / unladen)1 ft/s-1 ft/s
Lowering speed (laden / unladen)2 ft/s-1 ft/s
Drawbar pull (Laden / Unladen)900 daN / 930 daN
Gradeability (laden / unladen)13 % / 15 %
Service brakeOil bath
Engine
Number of drive motor / Drive motor rating S2 60 min2 / 4.50 kW
Lift motor rating at S3 15%8.60 kW
Battery according to DIN 43531/35/36 A, B, CDIN43531 A
Battery voltage / capacity48 V / 690 Ah
Energy consumption according to VDI cycle (kW/h)4.70 kWh
Miscellaneous
Type of drive controlElectronic
Working hydraulic pressure for attachments2611 PSI
Oil flow rate for attachments9 US gpm
Measured/guaranteed mean noise level at the ear of the operator< 70 dB
Sound level at the driver's ear according to DIN 12 05370 dB
